Removal & Installation: Removal

Perform the order below with the KDS.
(S/W Management → CDCU - Chassis Domain Control Unit → Variant Coding (BackUp & Input))

Information

Refer to the KDS screen for operating conditions and details
Remove the passenger luggage side trim.
(Refer to Body - " LUGGAGE SIDE TRIM ")

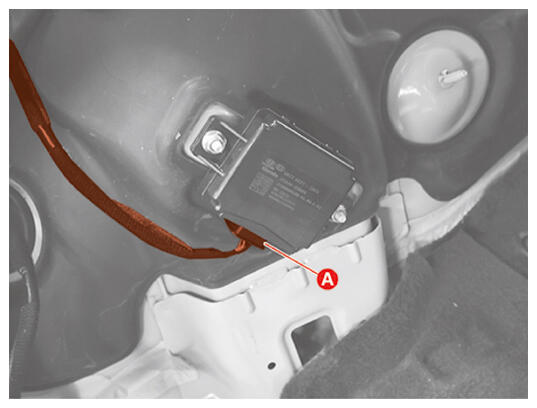

Disconnect the Chassis Domain Control Unit (CDCU) connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

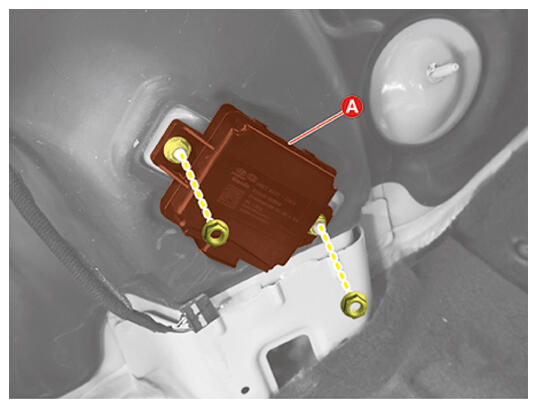

Remove the CDCU (A) after removing the nuts.
Tightening torque :

6.2 - 9.3 N.m (0.63 - 0.95 kgf.m, 4.6 - 6.9 lb.ft, 54.7 - 82.5 lb.in)
