When variant coding is required

  1. When SBCM_AST is exchanged.
  2. When B100051 code occurs.

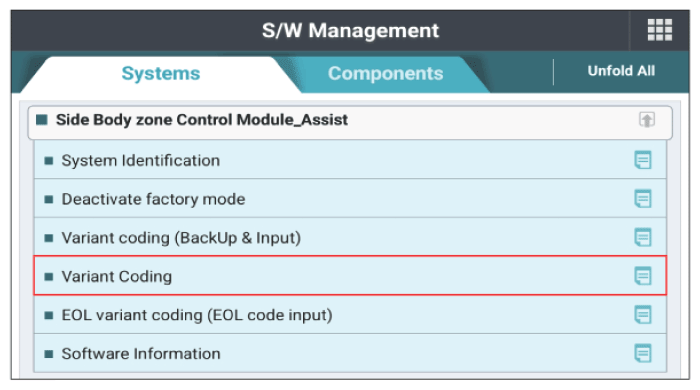

    G16886965Courtesy of KIA MOTORS AMERICA, INC.

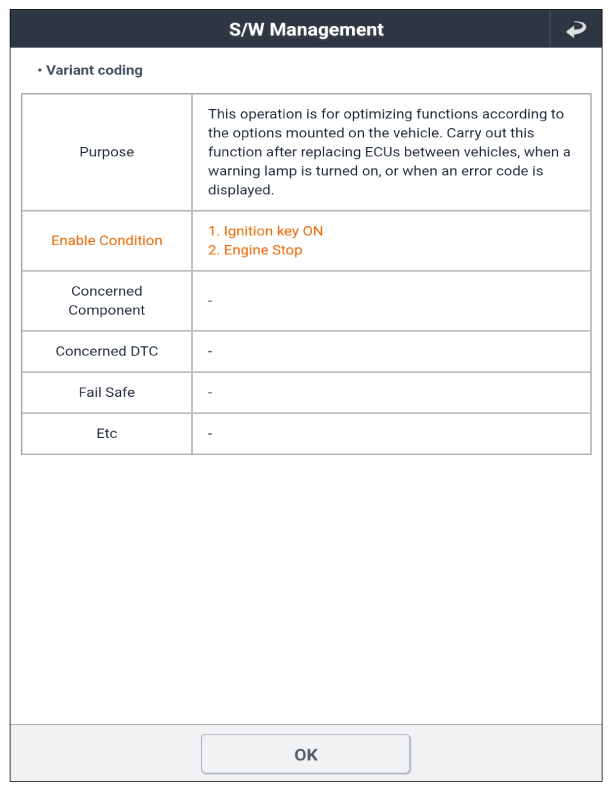

    G16886966Courtesy of KIA MOTORS AMERICA, INC.

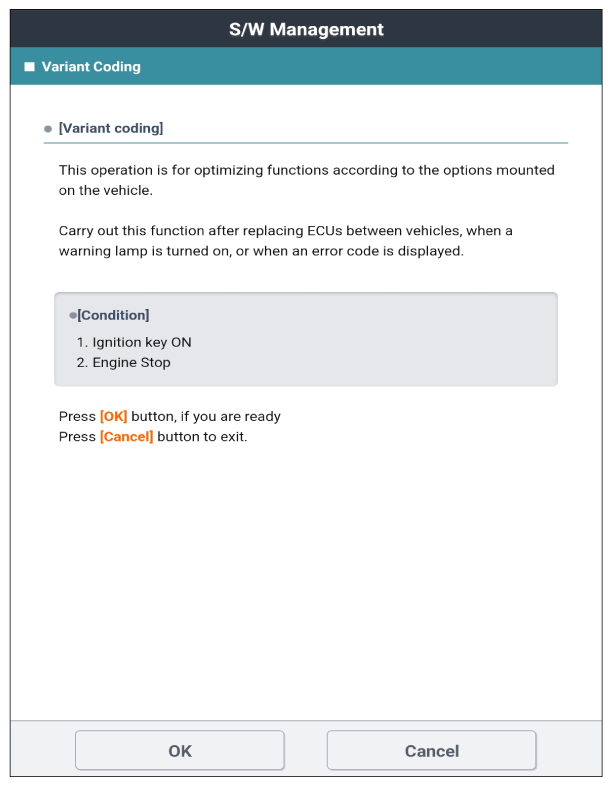

    G16886967Courtesy of KIA MOTORS AMERICA, INC.

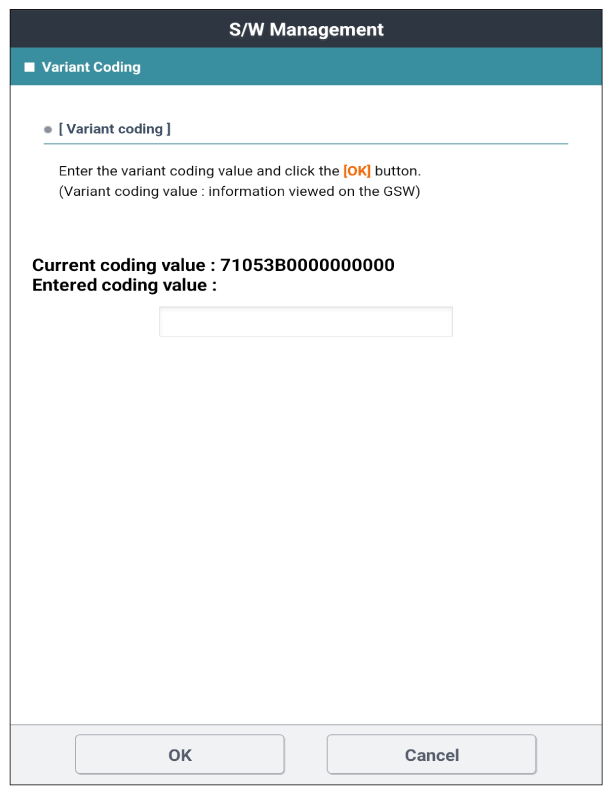

    G16886968Courtesy of KIA MOTORS AMERICA, INC.
Good
  • This fault code is caused by variant coding procedure is not conducted after replacing the SBCM_AST. Go to "VERIFICATION OF REPAIR " procedure.
No Good
  • Carefully re-do this troubleshooting guide steps.
  • If problem still occurs, replace control unit that causing the fault and then Go to "VERIFICATION OF REPAIR " procedure.

    * If a module is replaced, perform the relevant "Vehicle S/W Management" procedure.
