Component Inspection

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig. 1 to 5

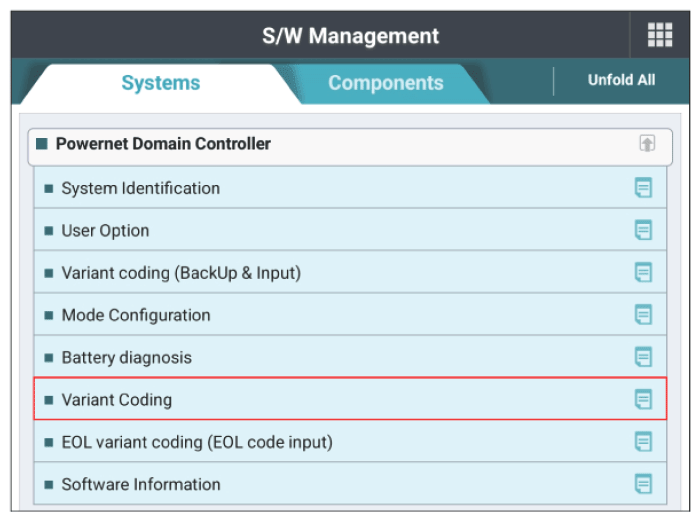

G16893095Courtesy of KIA MOTORS AMERICA, INC.

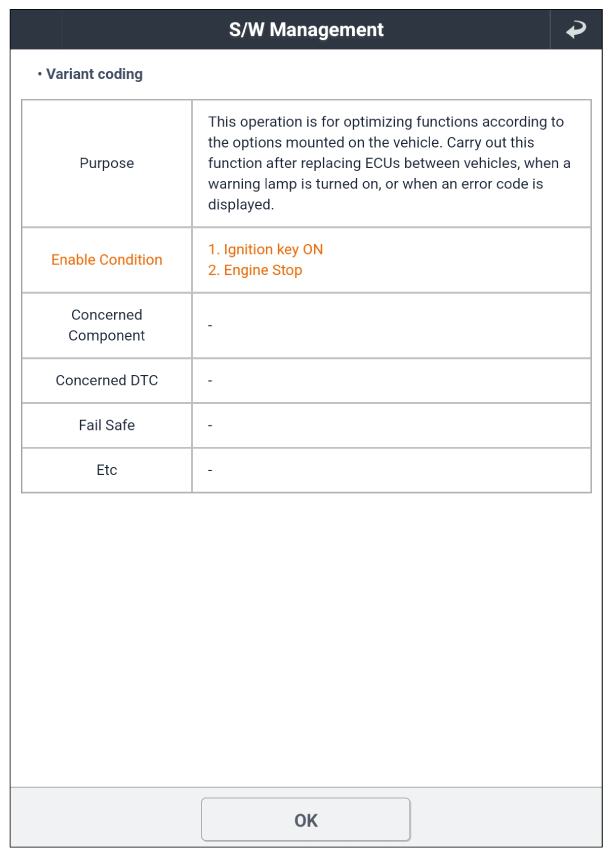

G16893096Courtesy of KIA MOTORS AMERICA, INC.

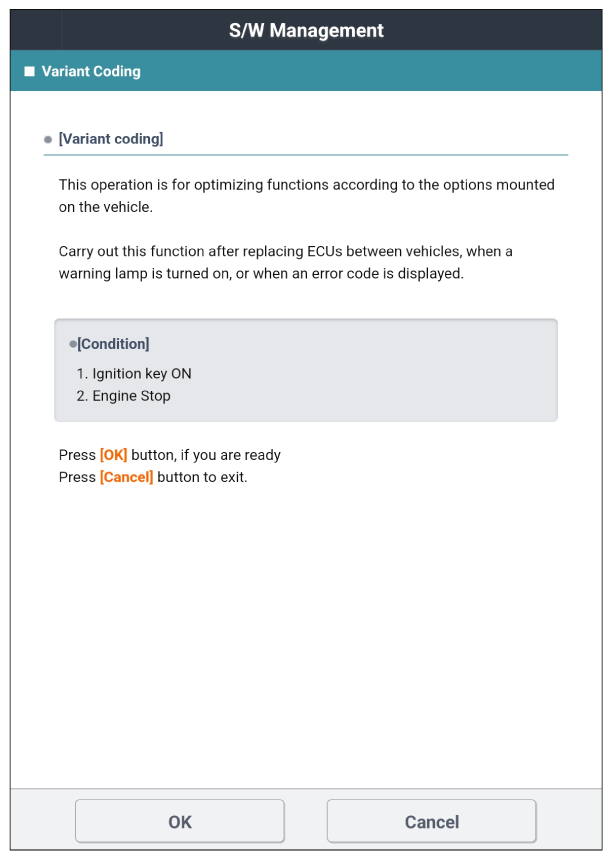

G16893097Courtesy of KIA MOTORS AMERICA, INC.

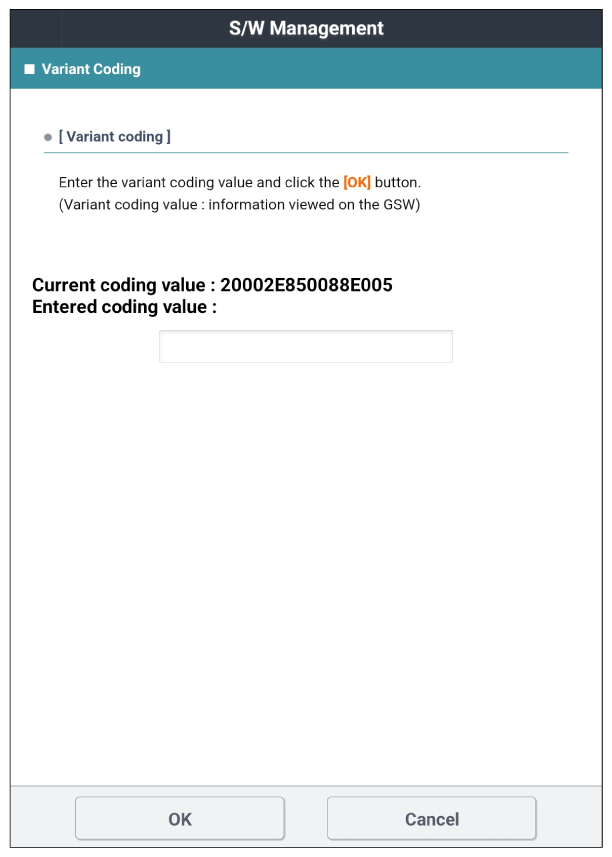

G16893098Courtesy of KIA MOTORS AMERICA, INC.

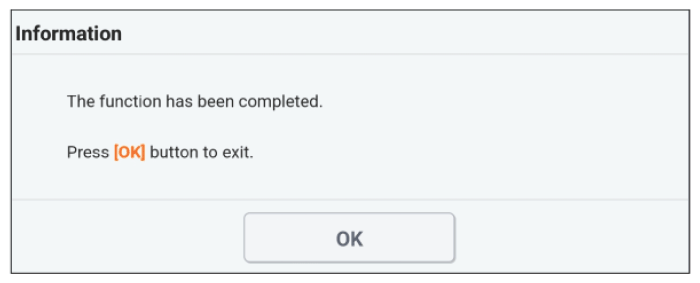

G16893099Courtesy of KIA MOTORS AMERICA, INC.
