Home >> Kia >> 2024 >> EV6 Light >> Repair and Diagnosis >> Body & Frame >> Seats >> Front Seat Assembly >> Components And Components Location >> Component

Components And Components Location: Component

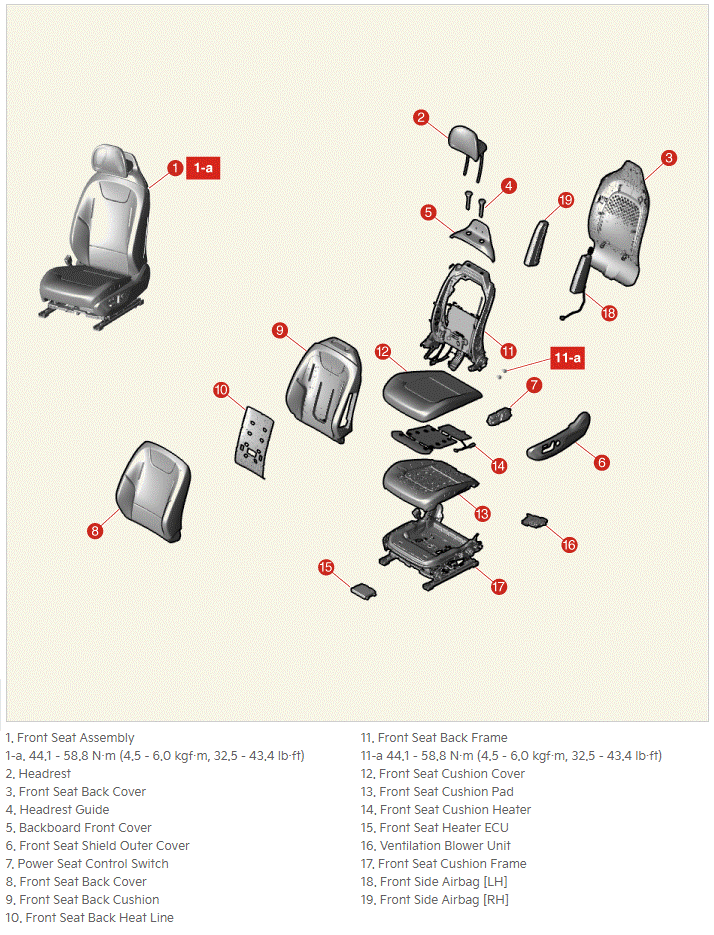

Fig 1: Front Seat Components Location With Torque Specification

G15812232

Courtesy of KIA MOTORS AMERICA, INC.
