Alignment (4WD): Adjustment: Front: Toe

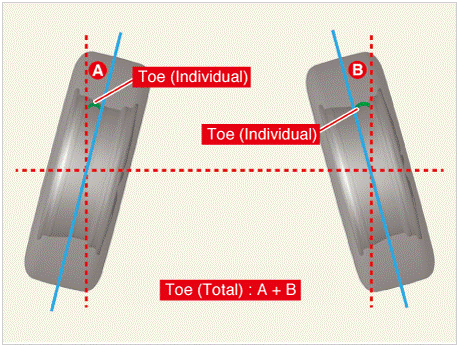

Toe is adjusted by rotation of the tie rod rotation buckle. Turning the tie rod to the rear of the vehicle will reduce the toe on the front wheels. The adjustment toe is adjusted by turning the left and right tie rods to the same value.

Total:  0.1° ± 0.2°

Individual:  0.05° ± 0.1°

Courtesy of KIA MOTORS AMERICA, INC.

1. Loosen the tie rod end nut (A) until the toe can be adjusted.

   Tightening torque:

   49.0 - 53.9 N.m (5.0 - 5.5 kgf.m, 36.2 - 39.8 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.

2. Fix the tie rod end (A) using a wrench to prevent the tie rod from turning when adjusting alignment.

   Courtesy of KIA MOTORS AMERICA, INC.

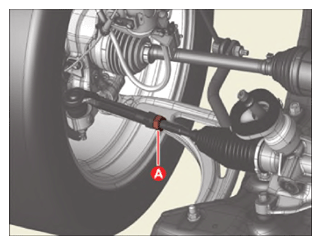

3. Adjust the toe in the specified value by turning the tie rod turn buckle (A).

   Courtesy of KIA MOTORS AMERICA, INC.

   NOTE: After toe adjustment, match the remaining number of threads on the left and right equally.
4. After adjustment, tighten the tie rod end nut (A) to specification torque.

   Tightening torque: 49.0 - 53.9 N.m (5.0 - 5.5 kgf.m, 36.2 - 39.8 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.

   NOTE:

   • Be careful not to twist the bellows boot when adjusting the toe.

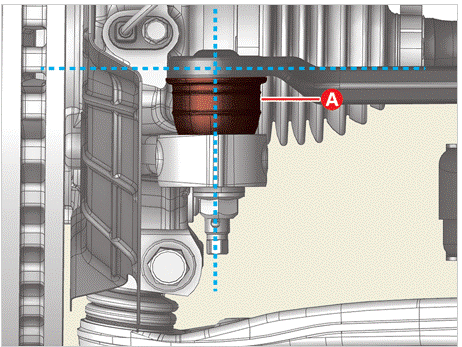

   • After toe adjustment, adjust the tie rod end position horizontally to ensure that the ball joint boot (A) is not pressed.

   Courtesy of KIA MOTORS AMERICA, INC.
