Power Window Main Switch

  1. Remove the driver side front door trim.

    (Refer to Body - " FRONT DOOR TRIM  ")

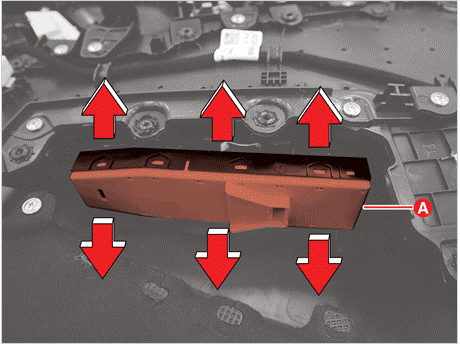

  2. Remove the power window main switch (A) after pushing the hooks in the direction of arrow.
G15812712Courtesy of KIA MOTORS AMERICA, INC.

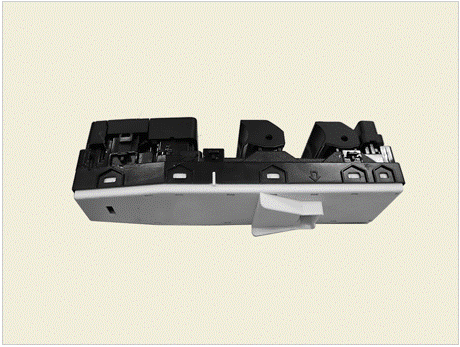

G15812713Courtesy of KIA MOTORS AMERICA, INC.
