Disassembly And Reassembly: Disassembly

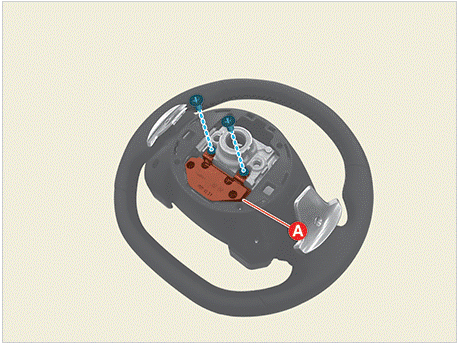

1. Remove the steering wheel dynamic damper (A) after removing the screws.

   Courtesy of KIA MOTORS AMERICA, INC.

2. Remove the RH drive mode switch.

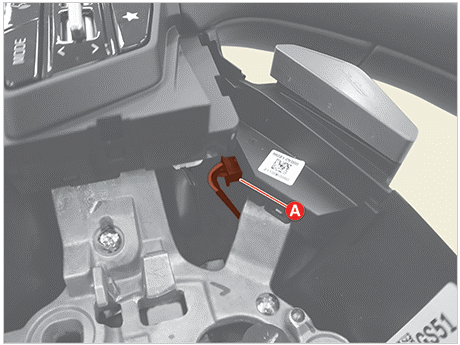

   1. Disconnect the RH drive mode switch connector (A).

      Courtesy of KIA MOTORS AMERICA, INC.

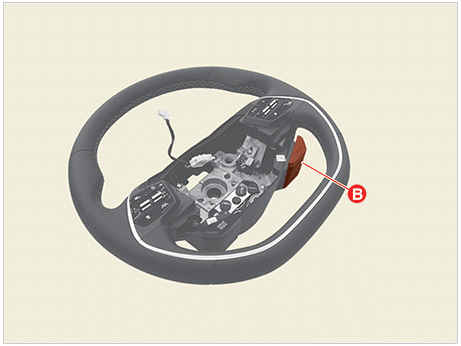

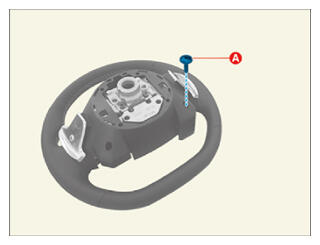

   2. Remove the RH drive mode switch (B) after removing the screw (A).

   Courtesy of KIA MOTORS AMERICA, INC.

   Courtesy of KIA MOTORS AMERICA, INC.

3. Remove the LH drive mode switch.

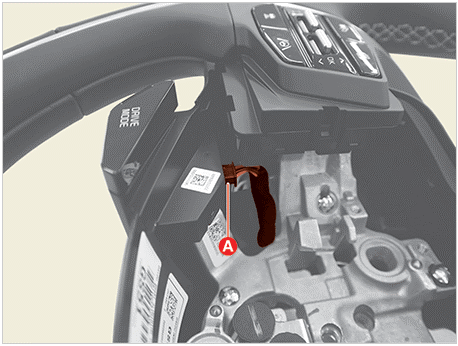

   1. Disconnect the LH drive mode switch connector (A).

      Courtesy of KIA MOTORS AMERICA, INC.

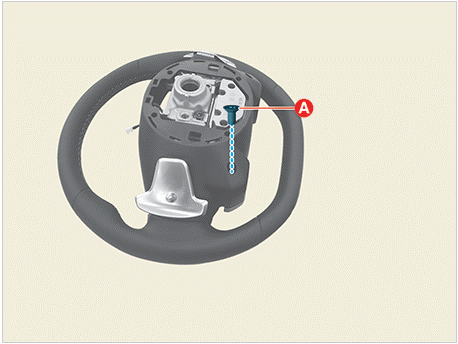

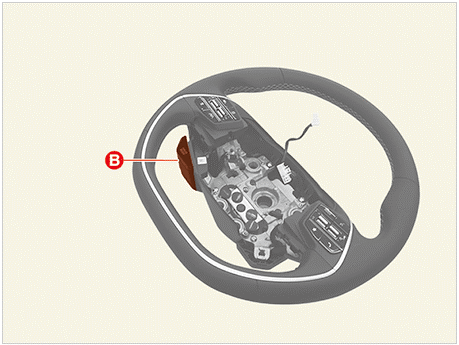

   2. Remove the LH drive mode switch (B) after removing the screw (A).

   Courtesy of KIA MOTORS AMERICA, INC.

   Courtesy of KIA MOTORS AMERICA, INC.

4. Remove the paddle shifter switches.
   1. Remove the paddle shifter switch screws (A).

      Courtesy of KIA MOTORS AMERICA, INC.

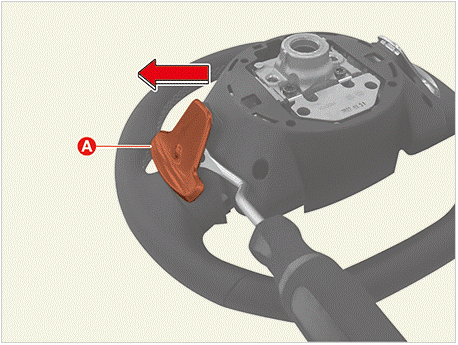

   2. Separate the paddle shifter switches (A) using a remover or a suitable tool.

      Courtesy of KIA MOTORS AMERICA, INC.

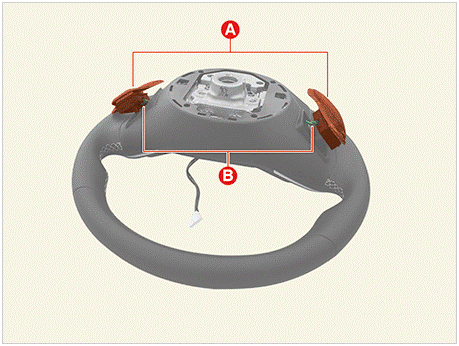

   3. Remove the paddle shifter switches (A) after disconnecting the connectors (B).

   Courtesy of KIA MOTORS AMERICA, INC.

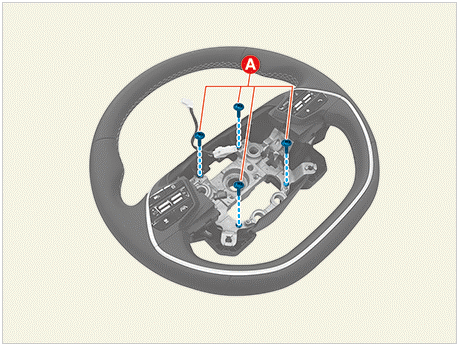

5. Remove the steering wheel lower cover screws (A).

   Courtesy of KIA MOTORS AMERICA, INC.

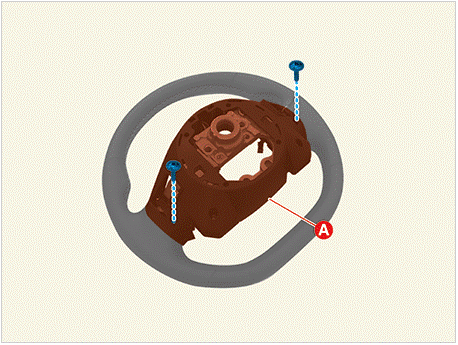

6. Separate the steering wheel lower cover (A) after removing the screws.

   Courtesy of KIA MOTORS AMERICA, INC.

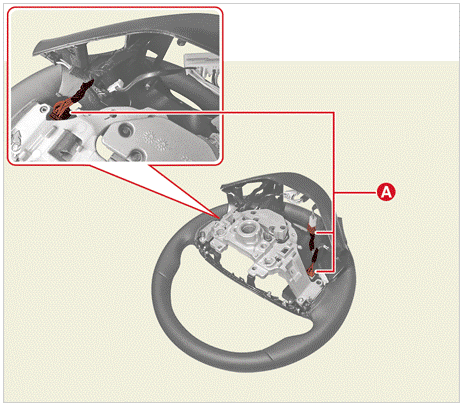

7. Disconnect the remote control switch connectors (A).

   Courtesy of KIA MOTORS AMERICA, INC.

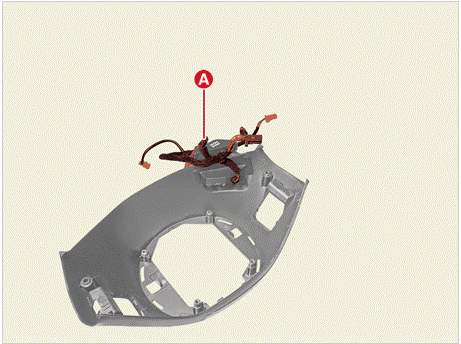

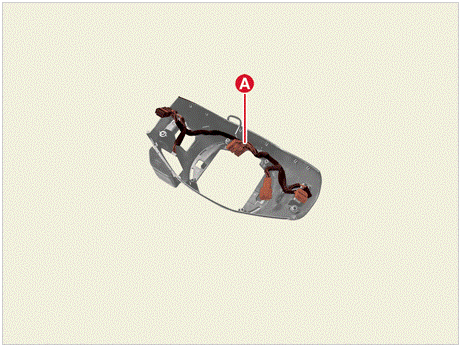

8. Remove the steering wheel extension wire (A).

   Courtesy of KIA MOTORS AMERICA, INC.

   Courtesy of KIA MOTORS AMERICA, INC.

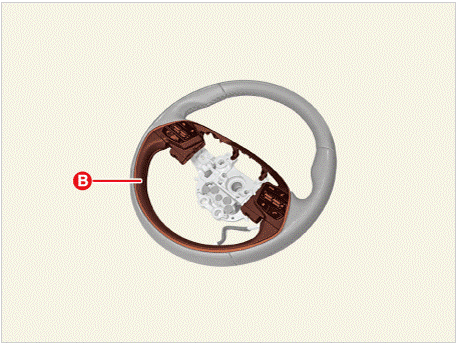

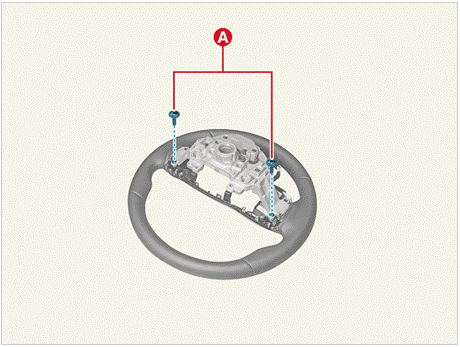

9. Remove the steering wheel bezel (B) after removing the mounting screws (A).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
