Monitor DTC Status

Inspection Condition	Inspection Procedure	Reference

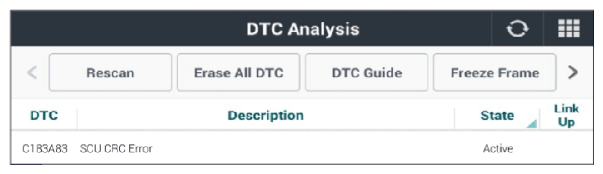

Ignition "ON".	Connect KDS to "Data Link Connector (DLC)". Monitor "Diagnostic Trouble Codes (DTC)" with KDS.	Fig. 1

Courtesy of KIA MOTORS AMERICA, INC.

Active Fault

History/Pending Fault

Fault is intermittent caused by poor contact in E-Shifter connector or was repaired and E-Shifter memory was not cleared.
Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
Repair or replace as necessary, go to "VERIFICATION OF REPAIR " procedure.
