Removal & Installation: Removal

Disconnect the battery negative (-) cable.
Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")

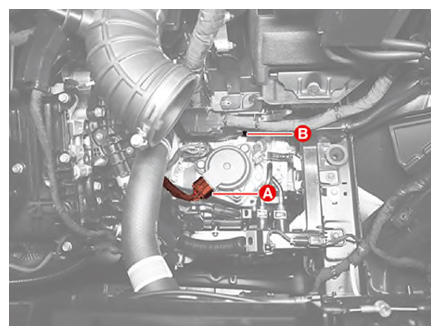

Remove the wiring fixing clip (B) and disconnect the electronic shift actuator connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

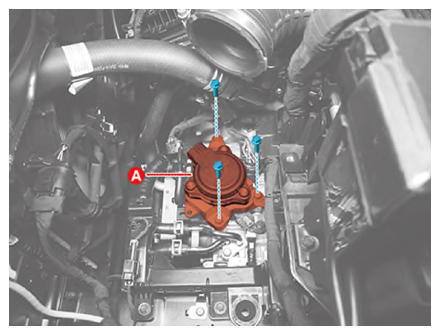

Remove the electronic shift actuator (A) after removing the bolts.
Tightening torque:

20.6 - 26.5 N.m (2.1 - 2.7 kgf.m, 15.2 - 19.5 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
