[Automatic Transaxle Decoder Chart]

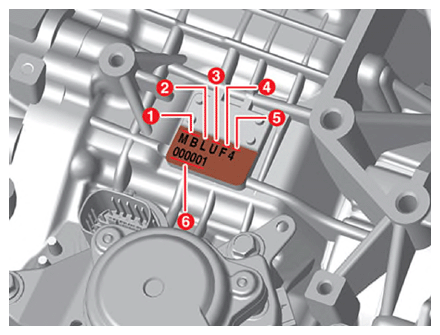

G14796463Courtesy of KIA MOTORS AMERICA, INC.
  1. Transaxle model
    • LB: A8LF1
  2. Production year (Except I, O, Q, U, Z)
    1. L: 2020, M: 2021, N: 2022, P: 2023...
  3. Final gear ratio
    1. U: 3.510
  4. Detailed classification
    1. J: Lambda-III 3.5 GDI (SBC type)
    2. K: Lambda-III 3.5 GDI (SBW type)
  5. Plant of production
    1. 2: Powertech Plant2
    2. 4: Powertech Plant4
    3. U: Ulsan Plant 1
    4. S: Ulsan Plant 2
    5. N: Ulsan Plant 3
    6. A: PTA
    7. H: Hwasung
    8. M: Mexico
    9. C: PTC 1 Plant
    10. D: PTC 2 Plant
  6. Transaxle production sequence number
    • 000001 ~ 999999
