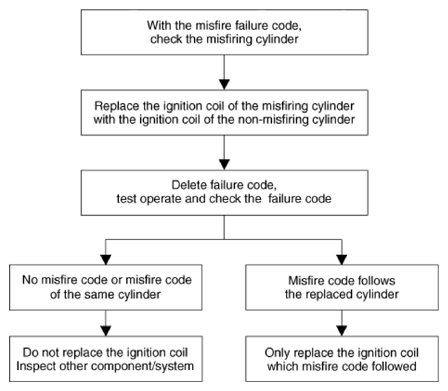

Test For Changing Position Of Each Ignition Coil

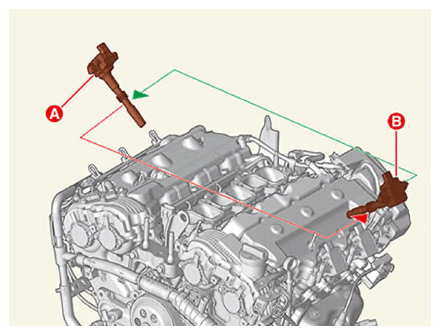

1. Change the misfired ignition coil (A) and normal ignition coil (B).

   Courtesy of KIA MOTORS AMERICA, INC.

   NOTE: Do not move with spark plug at the same time (move the ignition coil only)
2. Perform the driving test after deleting the DTC code.

Courtesy of KIA MOTORS AMERICA, INC.
