Description & Operation: Description: Components

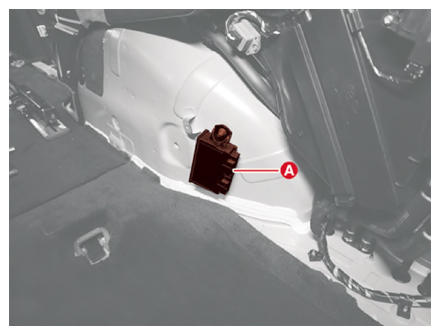

1. Power Tailgate Module (PTGM)

   Courtesy of KIA MOTORS AMERICA, INC.

   PTGM is installed inside the left side of the luggage side trim in the back.

   PTGM operates two spindle drive motors.

   It also controls the anti-pinching function by analyzing the hall sensor and anti-pinch sensor in the spindle.

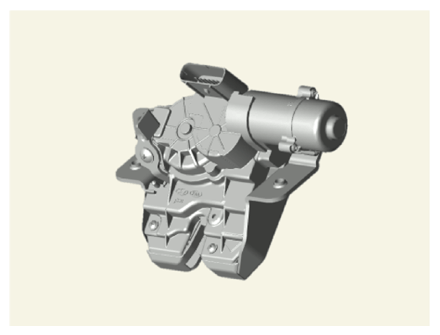

2. PTG Latch Assembly

   Courtesy of KIA MOTORS AMERICA, INC.

   PTG latch assembly is installed at the end of the tailgate and operates power lock/unlock mode under the PTGM control.

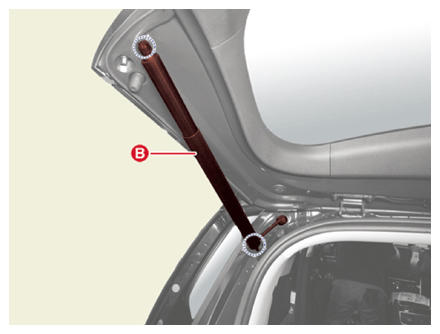

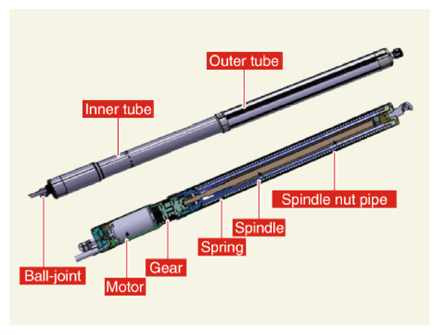

3. PTG Drive Unit

   Courtesy of KIA MOTORS AMERICA, INC.

   Courtesy of KIA MOTORS AMERICA, INC.

   PTG spindle controls the tailgate's opening and closing using the torque of the motor inside.

   Recognize the tailgate's driving direction by sending motor's revolving direction signal inside of spindle to PTGM.

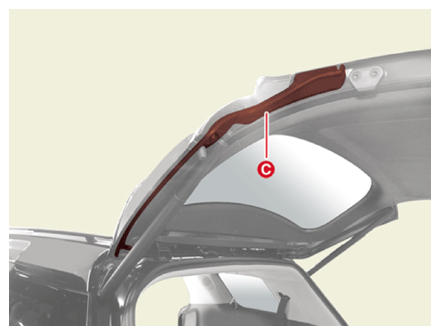

4. Anti-Pinch Weather Strip

   Courtesy of KIA MOTORS AMERICA, INC.

   Anti-Pinch Weather Strip is installed on the left and right sides of the tailgate and detects jamming of an object during power tailgate closing operation.

   When jamming is detected, PTGM will immediately reverse tailgate to full open status.

   AAnti-pinch weather strip does not operate when the tailgate is while fully closed or fully open or stationary.

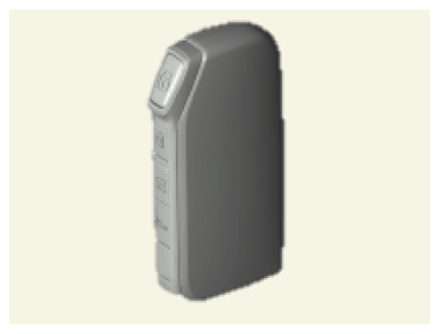

5. FOB

   Courtesy of KIA MOTORS AMERICA, INC.

   Tailgate will start the power opening function when the tailgate opening button on the FOB is pressed for more than 1.0 second.

   If the button is pressed shortly while the power tailgate is opening or closing, the power tailgate will stop its movement.

   If the button is pressed for 1.0 second while the power tailgate is opening or closing, the power tailgate will reverse its direction.

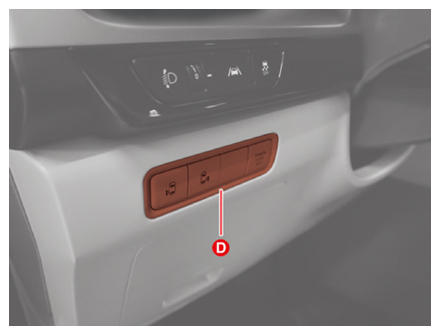

6. Side Crash Pad Switch

   Courtesy of KIA MOTORS AMERICA, INC.

   If the crash pad lower panel switch is pushed for 1.0 second, the tailgate will operate power opening or closing function.

   If the crash pad lower panel switch is pressed shortly while the power tailgate is opening or closing, the power tailgate will stop its movement.

   If the crash pad lower panel switch is pressed for 1.0 second while the power tailgate is opening or closing, the power tailgate will reverse its direction.

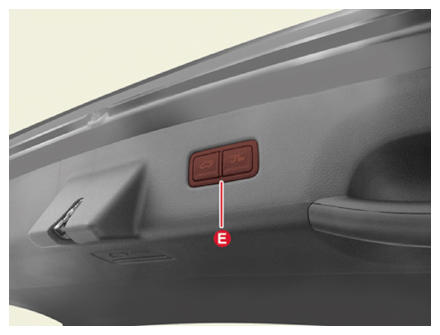

7. Power Tailgate Inner Switch

   Courtesy of KIA MOTORS AMERICA, INC.

   If the switch inside of the tailgate is pushed, the tailgate will start the power closing function.

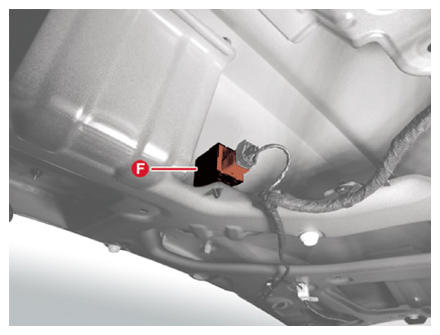

8. Power Tailgate Buzzer

Courtesy of KIA MOTORS AMERICA, INC.

When an obstacle is detected or power function is not performed properly in accordance to the user's order, the alarming buzzer will sound for 3 times.

And when power function is performed properly, the alarming buzzer will sound twice.
