Home >> Kia >> 2023 >> Telluride SX, FWD >> Repair and Diagnosis >> Brakes >> Traction Control >> Electronic Stability Control (ESC) System >> Rear Wheel Speed Sensor >> Components & Components Location >> Components >> 2WD

Components & Components Location: Components: 2WD

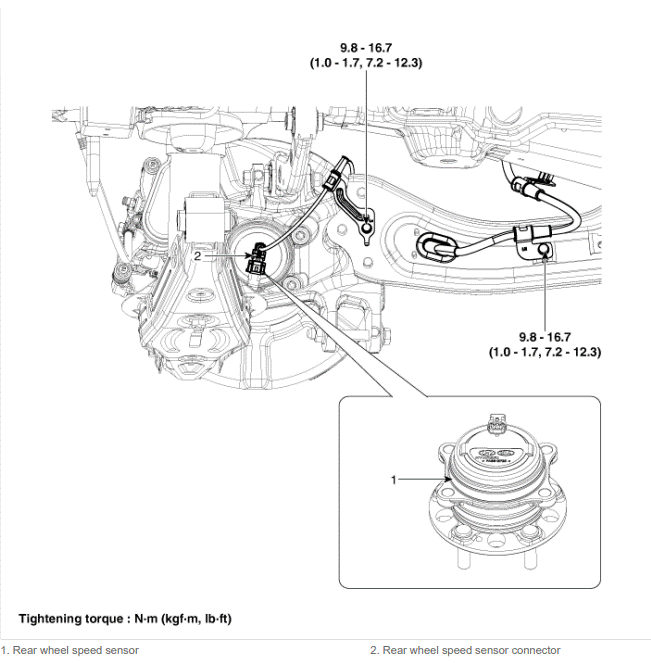

Fig 1: Rear Wheel Speed Sensor Components Location With Torque Specification (2WD)

G15709471

Courtesy of KIA MOTORS AMERICA, INC.
