Removal & Installation: Installation

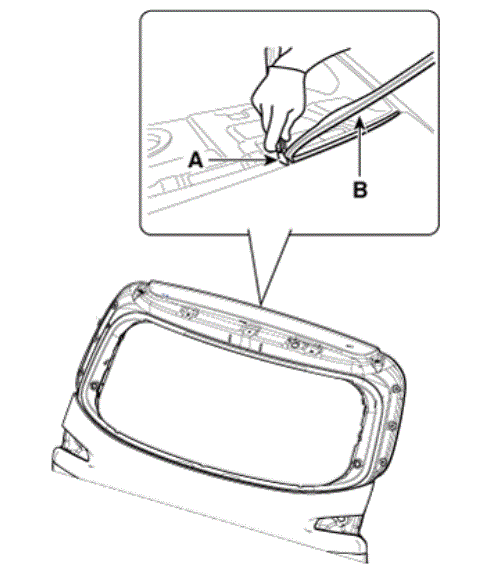

Remove the remaining sealant (B) on the body panel by using a cutting knife (A).
CAUTION: Put on gloves to protect your hands.

Courtesy of KIA MOTORS AMERICA, INC.

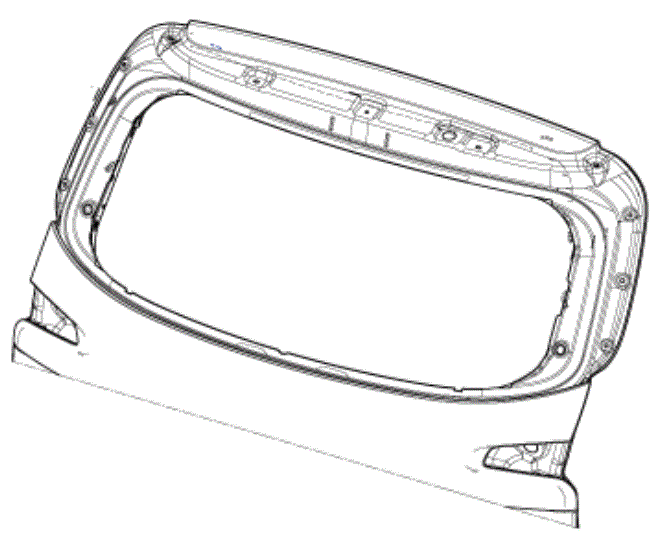

Apply the body primer to the bonding surface of body panel.
CAUTION:
- Be careful not to touch the surface covered with the primer because touching it may lead to water leaks after installing the tailgate glass.
- Do not apply the body primer to the glass.
- Remove any foreign materials from the primer-covered surface.
Courtesy of KIA MOTORS AMERICA, INC.

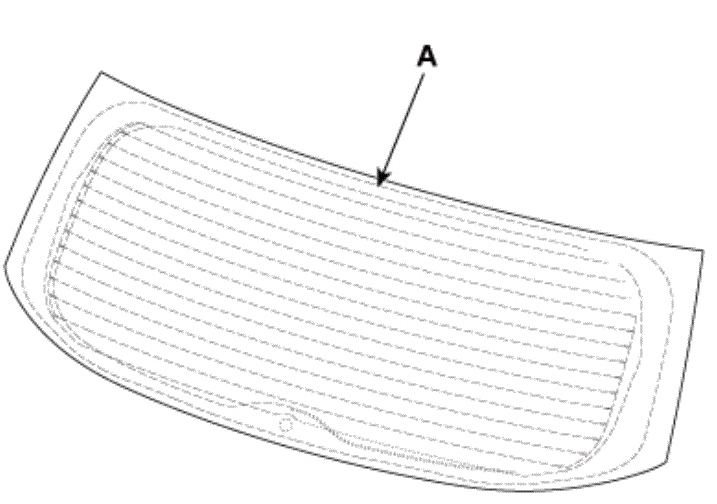

Apply the glass primer to the outer edge of tailgate glass (A).
CAUTION:
- Be careful not to touch the surface covered with the primer because touching it may lead to water leaks after installing the tailgate glass.
- Remove any foreign materials from the primer-covered surface.
Courtesy of KIA MOTORS AMERICA, INC.

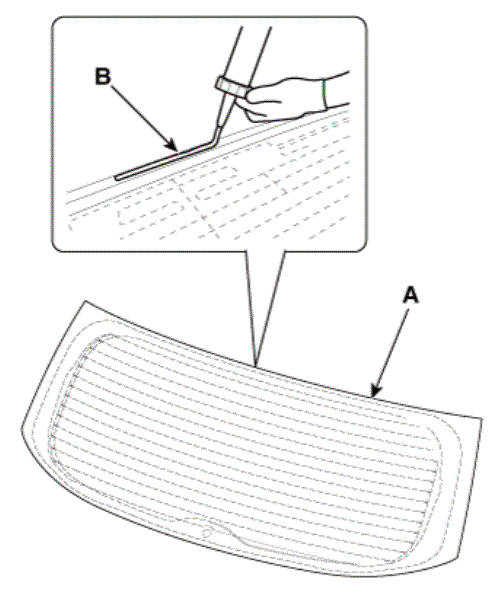

Apply the sealant (B) to the edge of rear tailgate glass (A) by using a sealant gun.

Courtesy of KIA MOTORS AMERICA, INC.

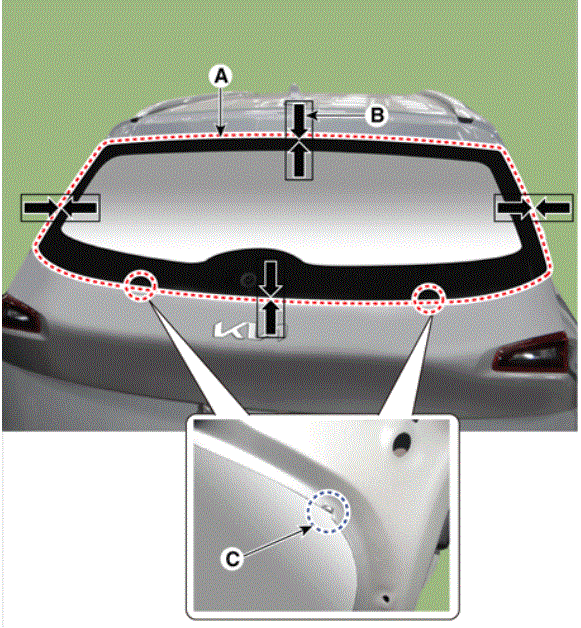

Using the glass holder, adjust the tailgate glass (A) to fit the alignment marks (B) on the body and lightly push the tailgate glass to make the edges fully seated on the bonding surface of body.
NOTE: When installing the tailgate window glass (A), be sure to fit the protruding part (C) on the reverse side of the glass into the groove on the body frame.

Courtesy of KIA MOTORS AMERICA, INC.
Connect the heated wire connector (A).

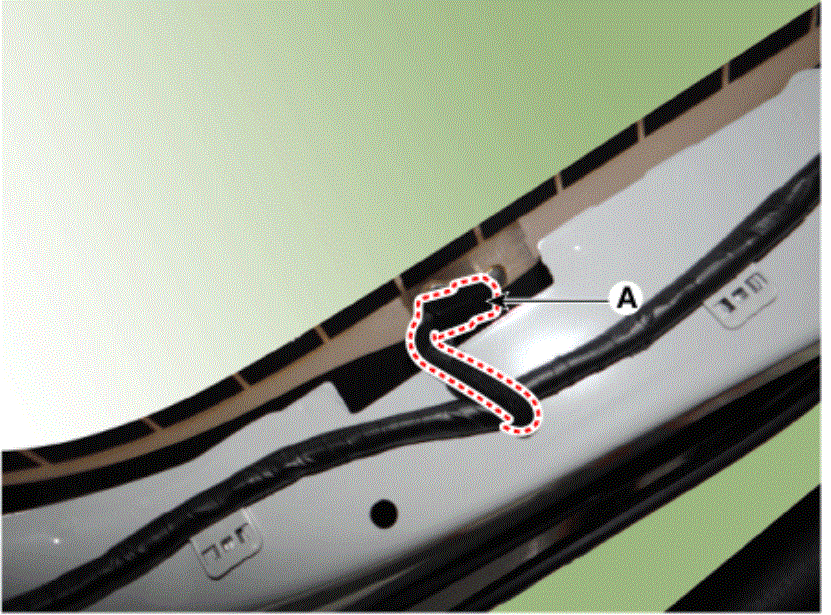

[Driver's side]

Courtesy of KIA MOTORS AMERICA, INC.

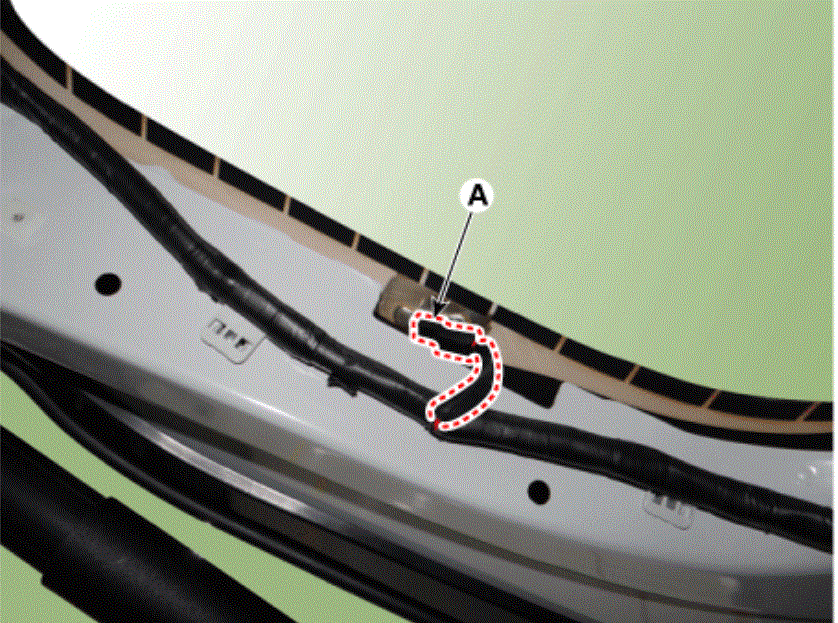

[Passenger's side]

Courtesy of KIA MOTORS AMERICA, INC.
To make sure that the applied sealant is completely hardened, leave the car on a flat surface for at least 3 to 4 hours after installing the tailgate glass.
Information
- If driving the car is inevitable, drive at a low speed for at least 8 hours.
- Advise the driver to avoid aggressive driving or driving on rough roads for 2-3 days after installing the tailgate window glass.
Conduct a leak testing.
Information
- The leak testing shall be conducted at least 4 hours after the tailgate window glass installation is completed.
- Do not directly spray the high-pressure water to the joint area.
Install the rear wiper motor.
(Refer to Body Electrical System - "WIPER MOTOR ")
Install the rear spoiler.
(Refer to Body Side Molding - "REAR SPOILER ")
Install the tailgate Trim.
(Refer to Tailgate - "TAILGATE LID TRIM ")
