Front Door Outside Handle
- Remove the door outside handle.
(Refer to Body - "FRONT DOOR HANDLE ")

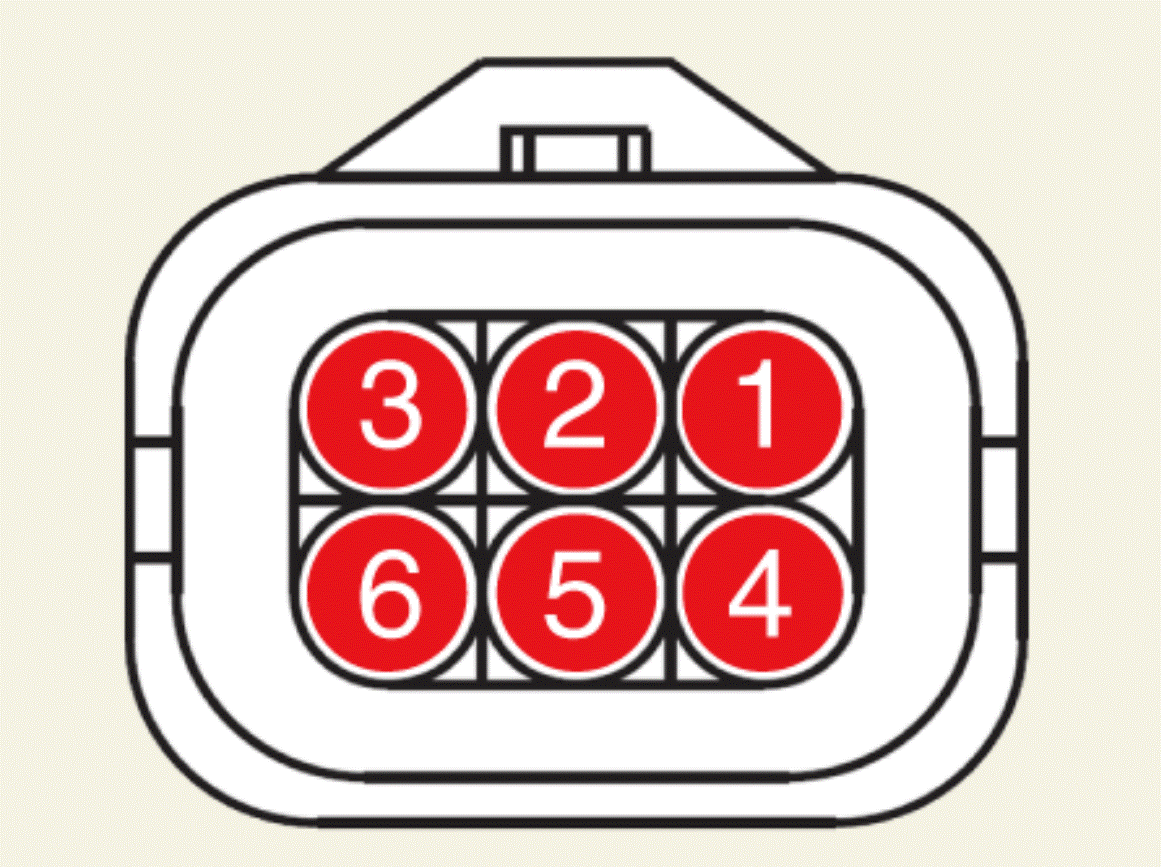

- Disconnect the front door outside handle connector and then check for continuity between terminals No 1 and No 6.
| Terminal | Function | |
|---|---|---|
| SMK | NFC | |
| 1 | Antenna power | Battery (+) |
| 2 | Pocket lamp (-) | L-CAN (Low) |
| 3 | Lock/Unlock switch | Capa sensor (Lock) |
| 4 | Antenna (Ground) | Capa sensor (Unlock) |
| 5 | Pocket lamp | L-CAN (High) |
| 6 | Lock/Unlock switch (Ground) | Ground |
