Installation
Removal & Installation: Installation
NOTE:
Check the cleanliness of the pressure sensor before installation.
Check the pressure sensor O-ring (A).
Courtesy of KIA MOTORS AMERICA, INC.

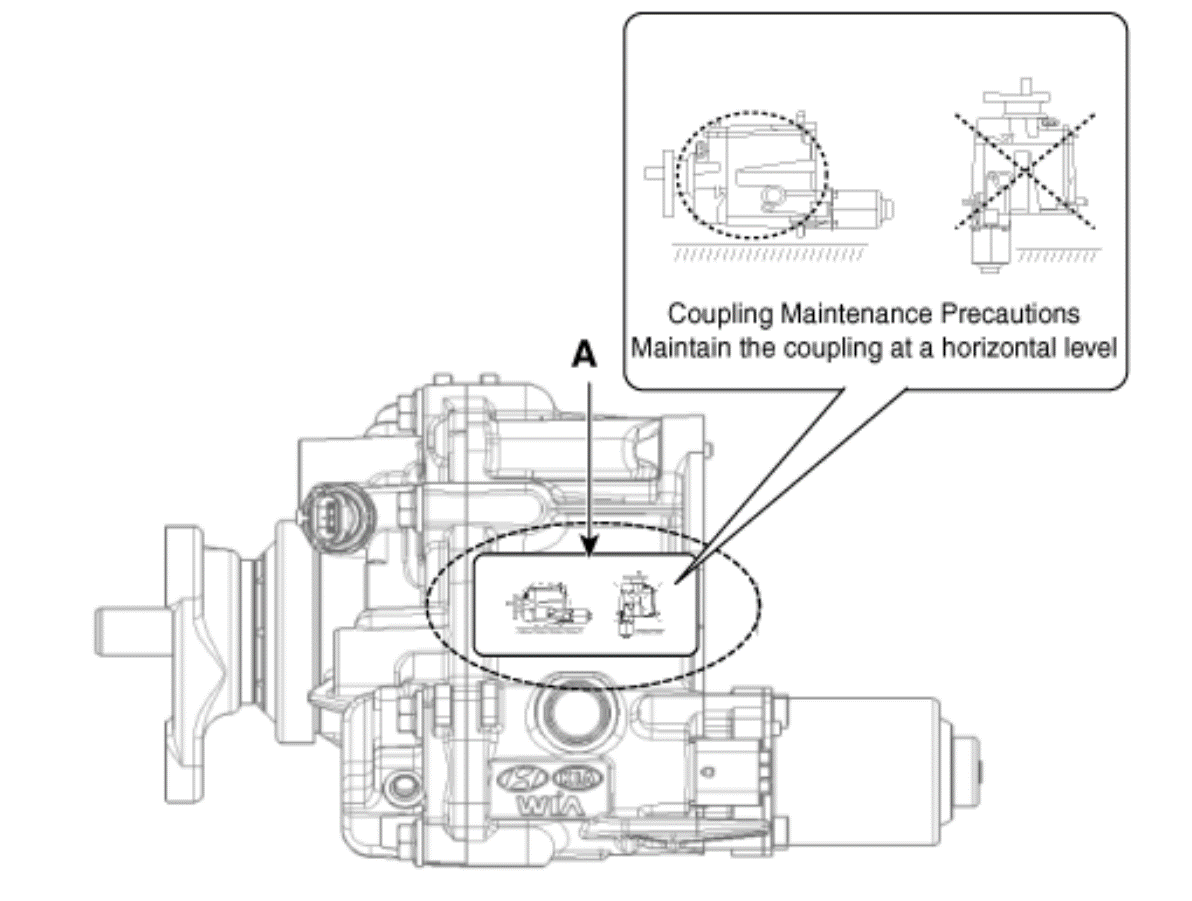

Keep it level with the sticker (A) on the top of the coupling.
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Courtesy of KIA MOTORS AMERICA, INC.
