Disassembly & Reassembly: Disassembly

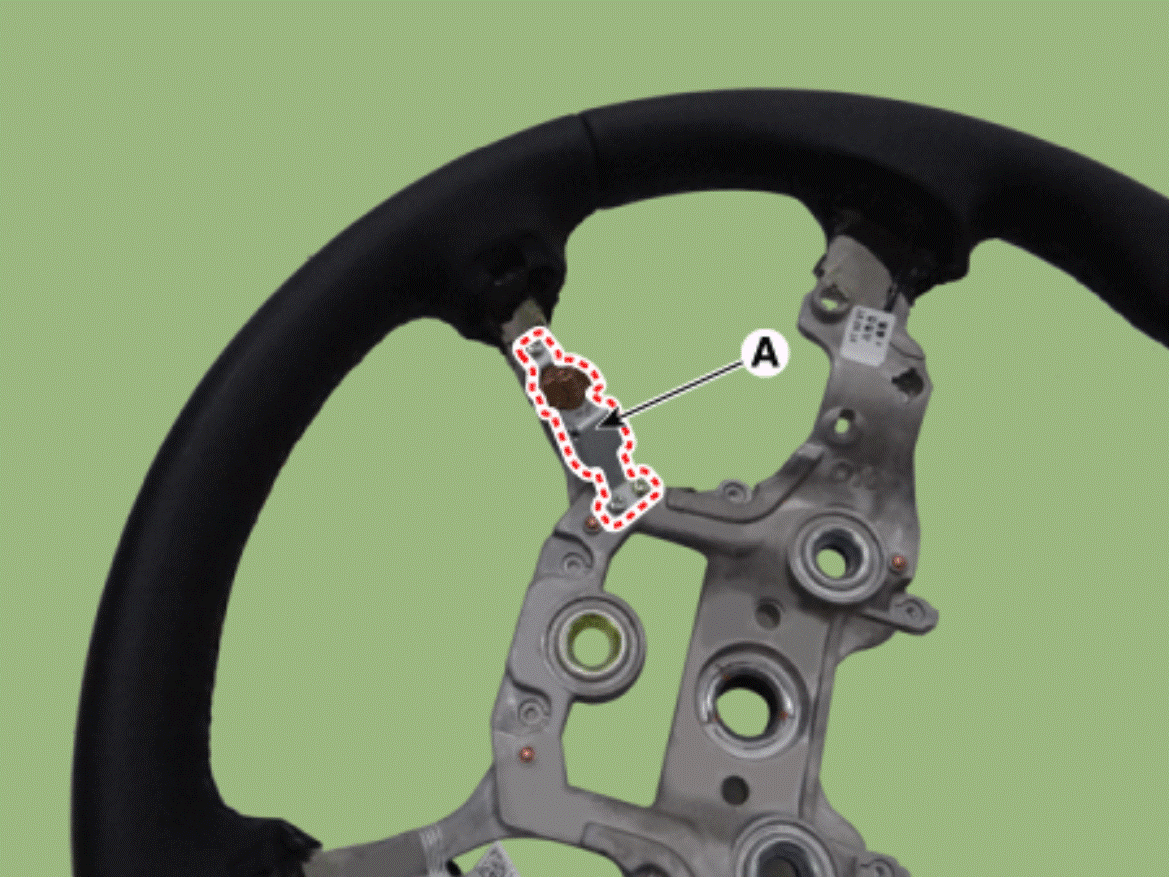

1. Remove the dynamic damper (A).

   Courtesy of KIA MOTORS AMERICA, INC.

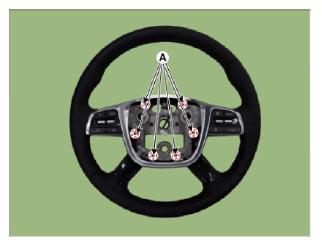

2. Remove the lower cover mounting screws (A).

   Courtesy of KIA MOTORS AMERICA, INC.

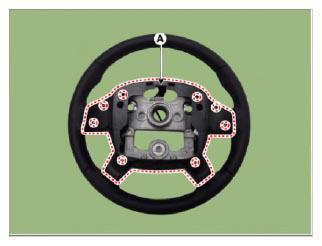

3. Remove the lower cover (A) by loosing the screws (B).

   Courtesy of KIA MOTORS AMERICA, INC.

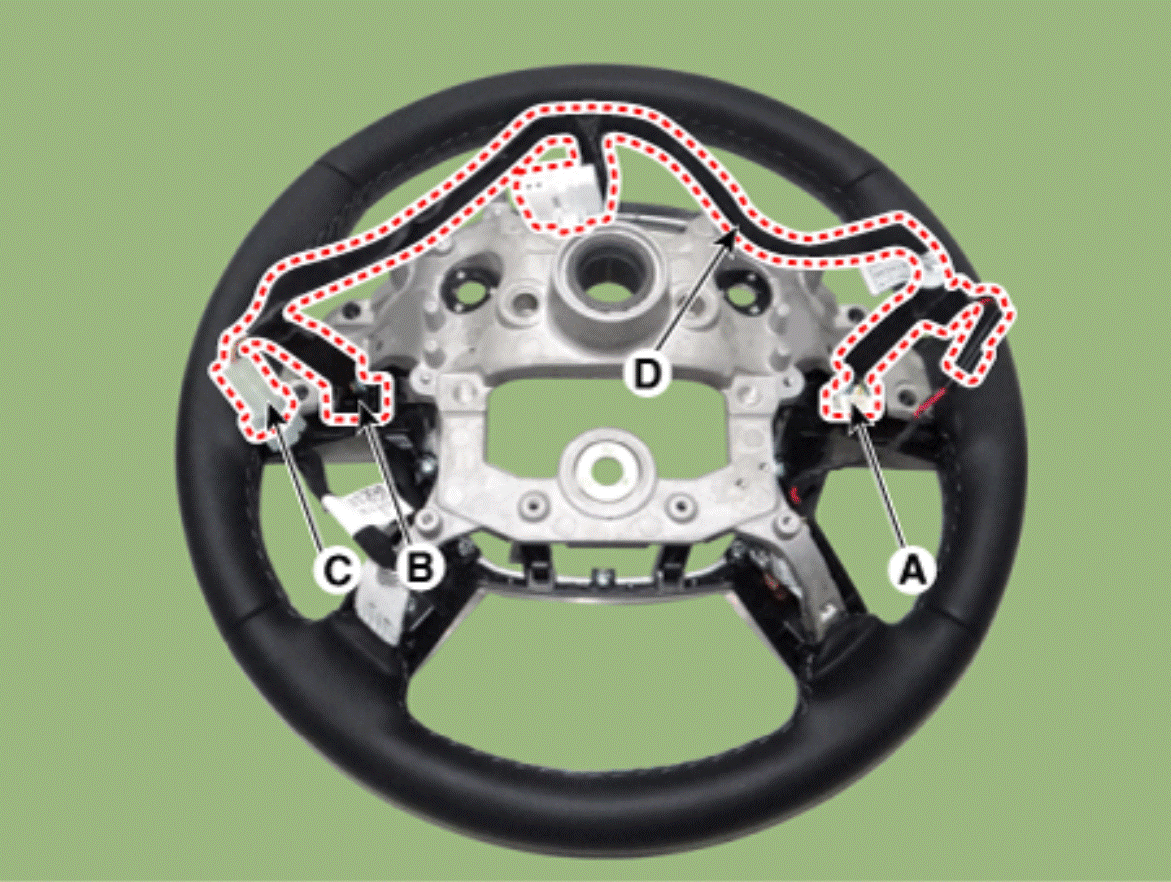

4. Remove the steering wheel wiring.
   1. Disconnect the remote control switch connectors (A).
   2. Disconnect the heated steering wheel connector (B).
   3. Disconnect the haptic motor connector (C).
   4. Remove the steering wheel wiring (D).

   Courtesy of KIA MOTORS AMERICA, INC.

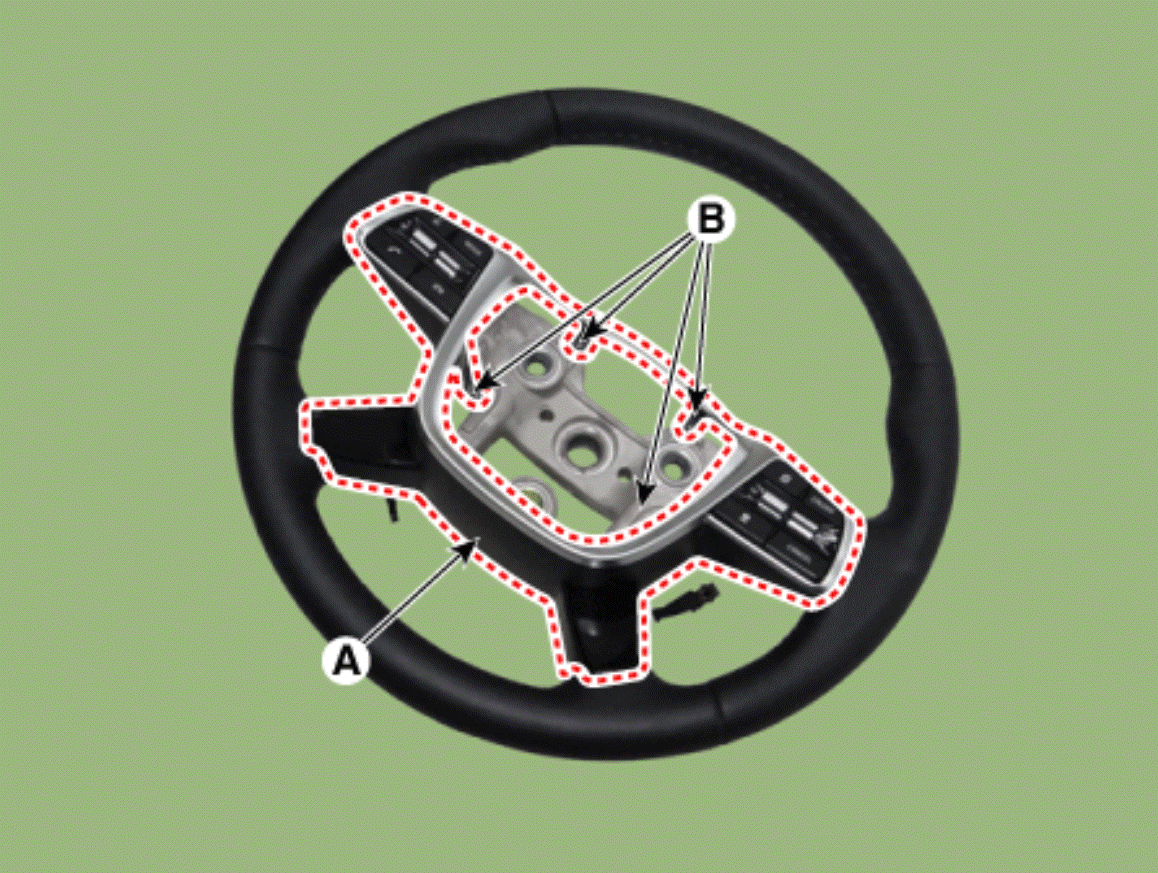

5. Remove the remote control switch assembly (A) by loosing the screws (B).

   Courtesy of KIA MOTORS AMERICA, INC.

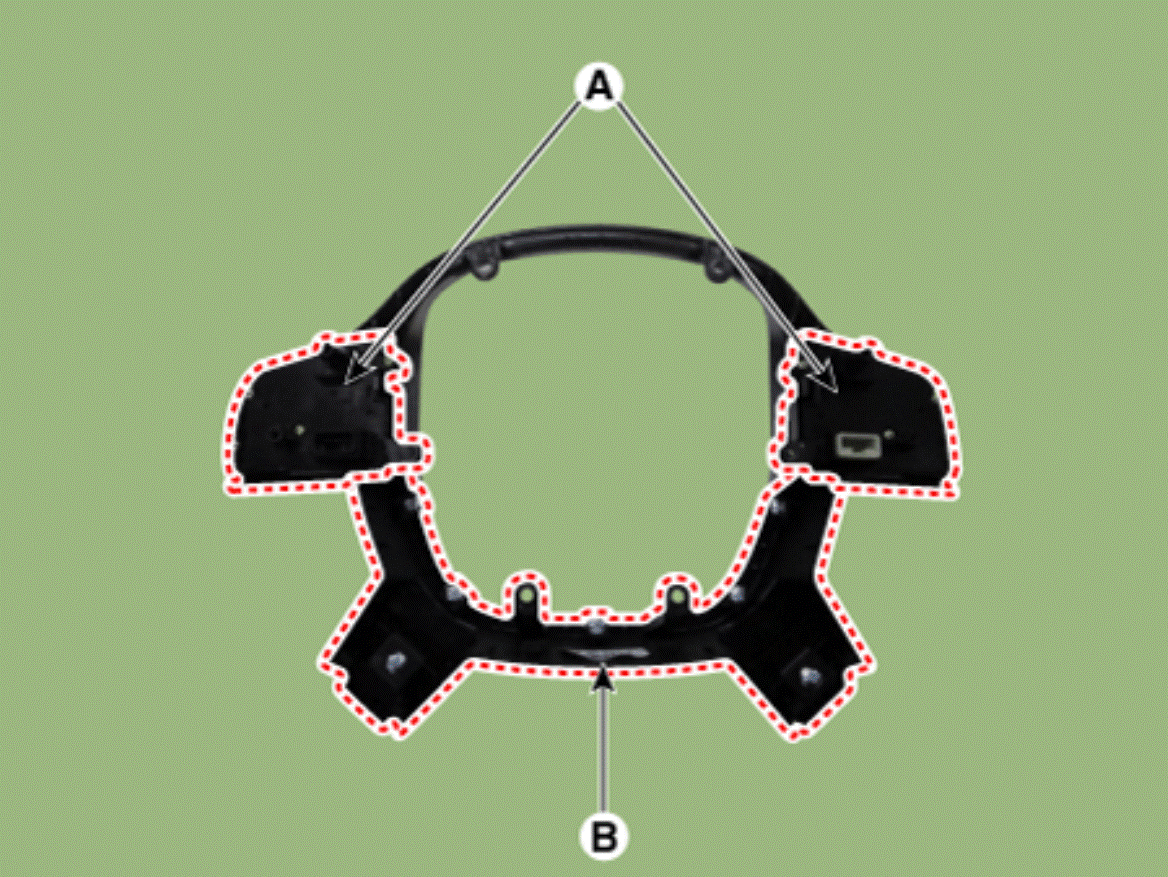

6. Remove the remote control switch (A) and bezel (B).

   Courtesy of KIA MOTORS AMERICA, INC.

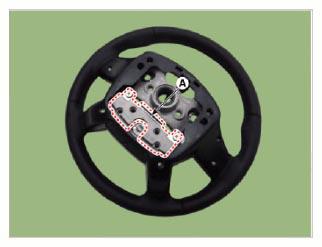

7. Remove the haptic motor (A).

Courtesy of KIA MOTORS AMERICA, INC.
