Driver Power Window Switch

  1. Remove the front door trim [Driver's Side].

    (Refer to Body - "FRONT DOOR TRIM ")

  2. Remove the door speaker gasket (A).
    G15710341Courtesy of KIA MOTORS AMERICA, INC.

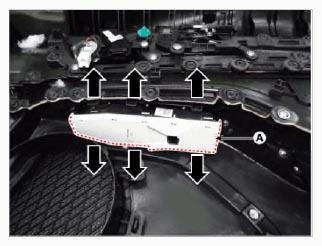

  3. Remove the driver power window switch (A) after pulling the hooks in the direction of arrow.
G15710342Courtesy of KIA MOTORS AMERICA, INC.
