Safety Power Window Motor

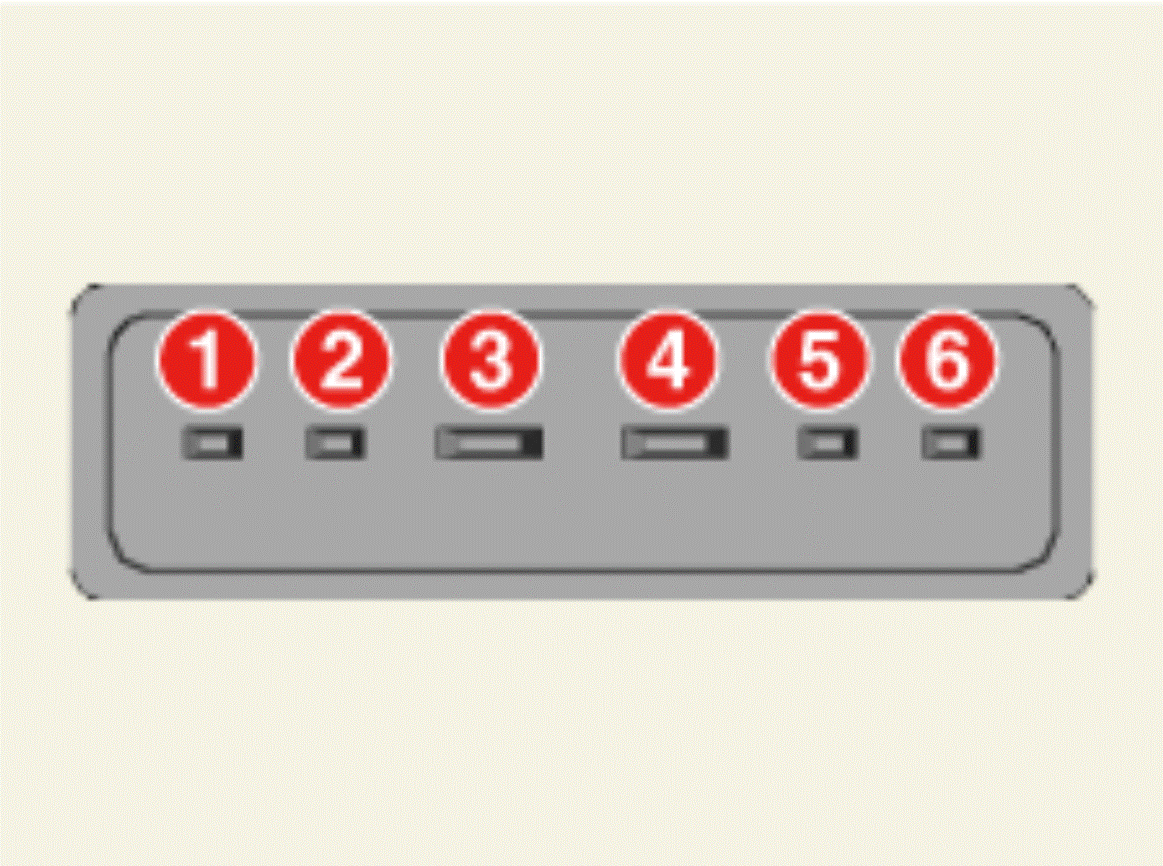

G15710333Courtesy of KIA MOTORS AMERICA, INC.
Pin Driver Pin Passenger, Rear
1 - 1 Power window switch
2 Not used 2 Not used
3 Fuse - P/WINDOW LH 3 Fuse - P/WINDOW RH
4 Ground 4 Ground
5 LIN 5 LIN
6 - 6 -
