Passenger/Rear Power Window Switch

  1. Remove the door trim.

    (Refer to Body - "FRONT DOOR TRIM ") - [Passenger's side]

    (Refer to Body - "REAR DOOR TRIM ")

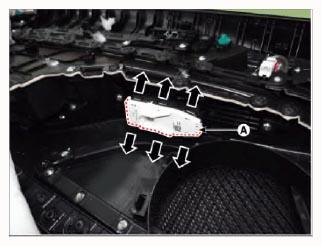

  2. Remove the passenger/rear power window switch (A) after pulling the hooks in the direction of arrow.
G15710343Courtesy of KIA MOTORS AMERICA, INC.
