Propeller Shaft Runout
WARNING: This page is about a different variant/trim than selected.

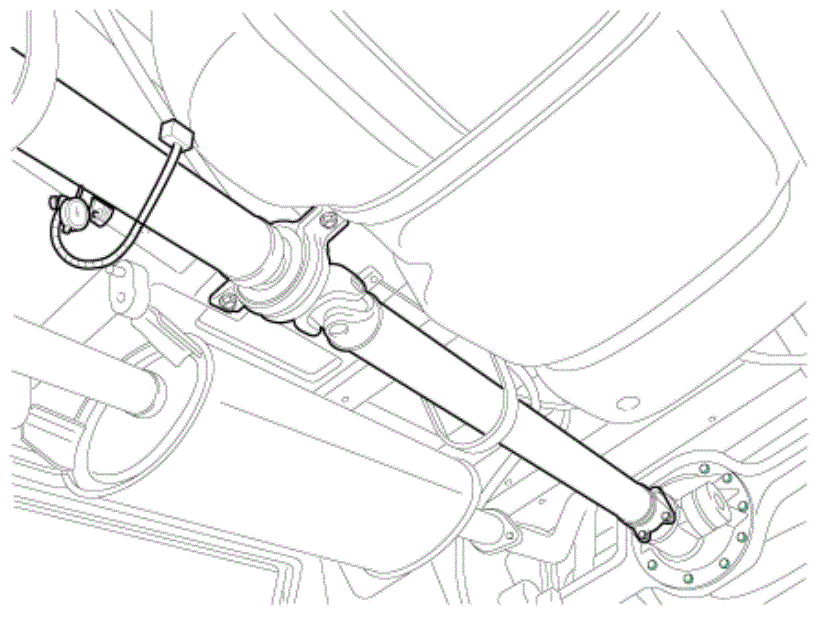

- Turn the propeller shaft slowly and check the runout. Repeat this procedure for the other propeller shaft.
Front Propeller Shaft Runout:
0.3 mm (0.0118 in.)
 Courtesy of KIA MOTORS AMERICA, INC.
|
- Replace the propeller shaft if either of the propeller shaft runouts exceeds the specified value.
