S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Select the menu "S/W Management" with KDS.
  3. Perform "Air Bleeding Mode" in "S/W Management" with KDS.
  4. After this procedure, Go to "VERIFICATION OF REPAIR " procedure.
 Fig.1 to 4
CAUTION: This is the function to discharge the air inside the oil.
G15719511Courtesy of KIA MOTORS AMERICA, INC.

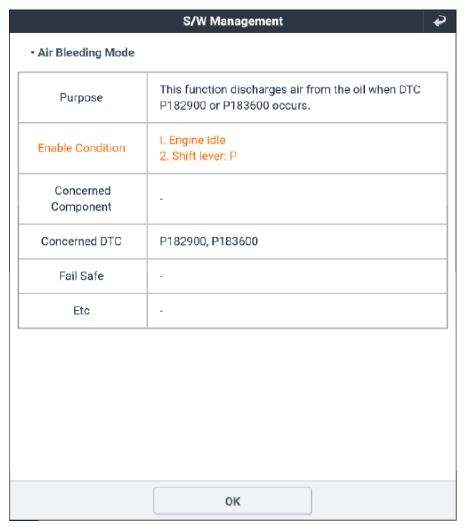

G15719512Courtesy of KIA MOTORS AMERICA, INC.

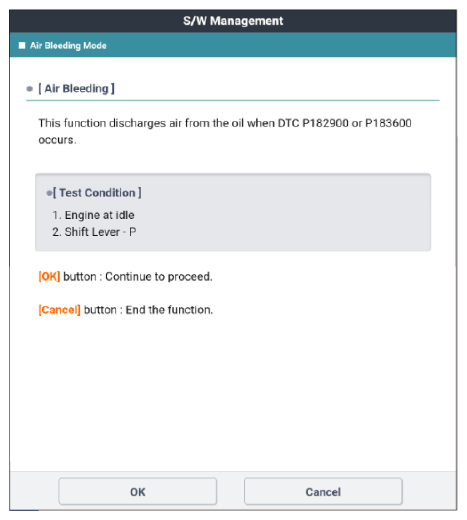

G15719513Courtesy of KIA MOTORS AMERICA, INC.
G15719514Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Select the menu "S/W Management" with KDS.
  3. Perform "Adaptive Value Back-up & Input (ECU replacement)" in "S/W Management" with KDS.
  4. After this procedure, Go to "VERIFICATION OF REPAIR " procedure.
 Fig.1 to 10
G15719515Courtesy of KIA MOTORS AMERICA, INC.

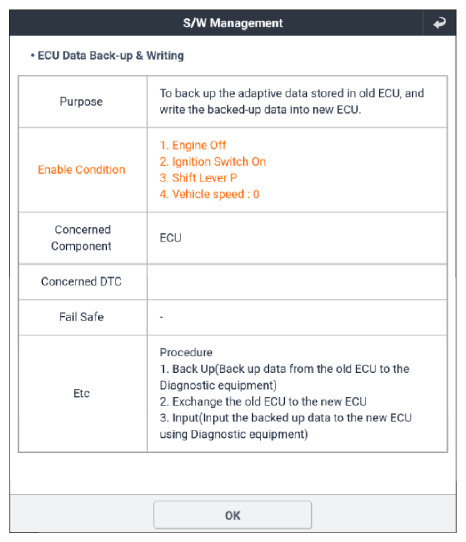

G15719516Courtesy of KIA MOTORS AMERICA, INC.

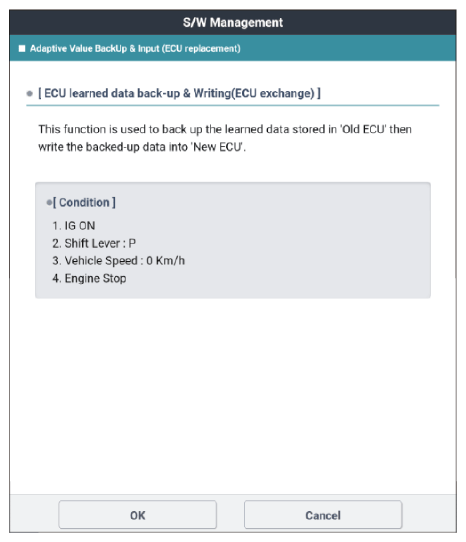

G15719517Courtesy of KIA MOTORS AMERICA, INC.

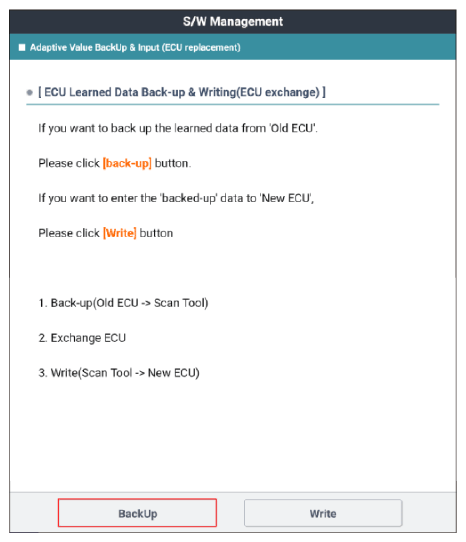

G15719518Courtesy of KIA MOTORS AMERICA, INC.

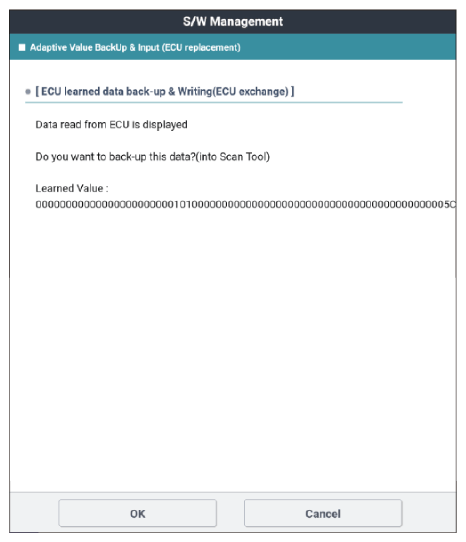

G15719519Courtesy of KIA MOTORS AMERICA, INC.

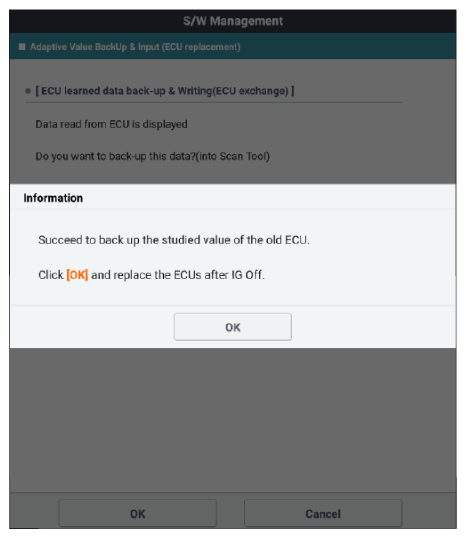

G15719520Courtesy of KIA MOTORS AMERICA, INC.
G15719521Courtesy of KIA MOTORS AMERICA, INC.

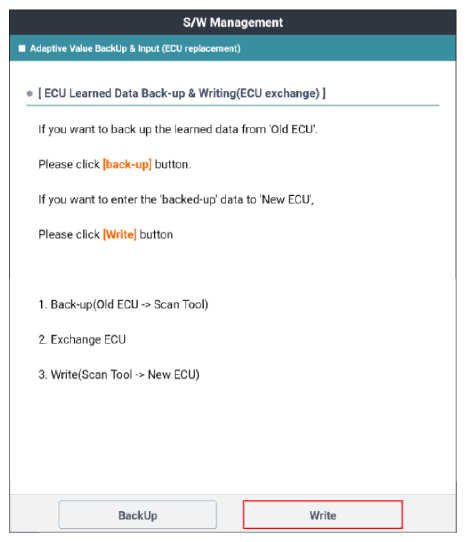

G15719522Courtesy of KIA MOTORS AMERICA, INC.

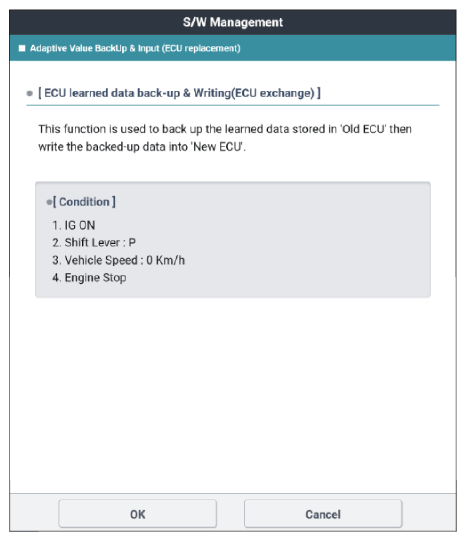

G15719523Courtesy of KIA MOTORS AMERICA, INC.

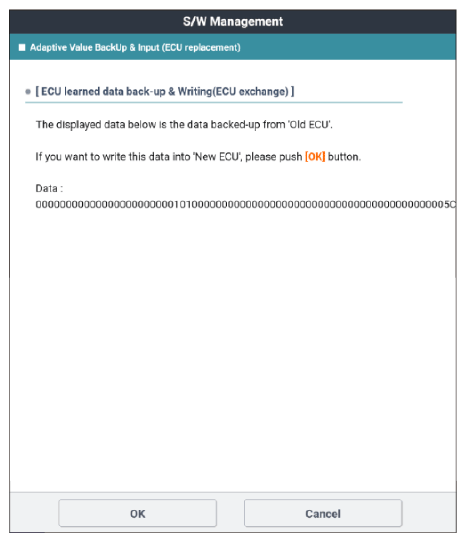

G15719524Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Select the menu "S/W Management" with KDS.
  3. Perform "Adaptive Value Back-up & Input (ECU & Transfer Assy replacement at once)" in "S/W Management" with KDS.
  4. After this procedure, Go to "VERIFICATION OF REPAIR " procedure.
 Fig.1 to 10
G15719525Courtesy of KIA MOTORS AMERICA, INC.
G15719526Courtesy of KIA MOTORS AMERICA, INC.

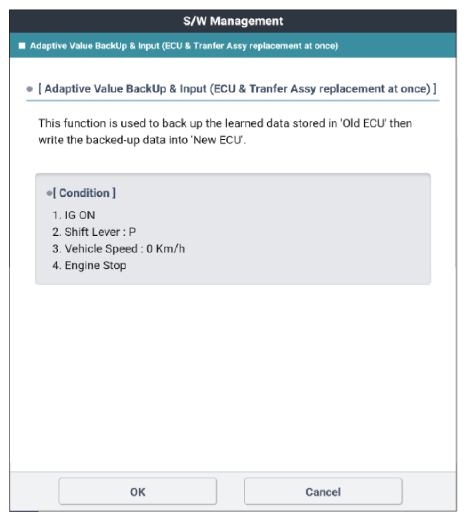

G15719527Courtesy of KIA MOTORS AMERICA, INC.

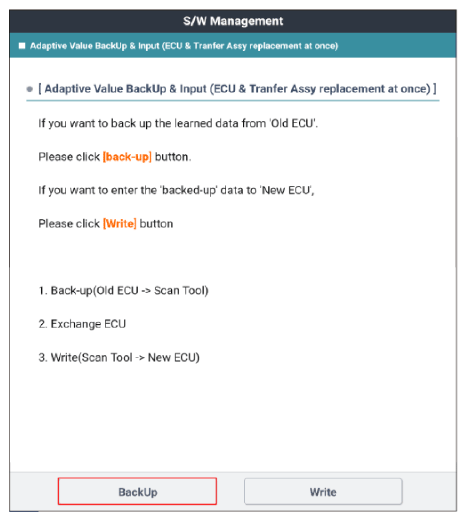

G15719528Courtesy of KIA MOTORS AMERICA, INC.

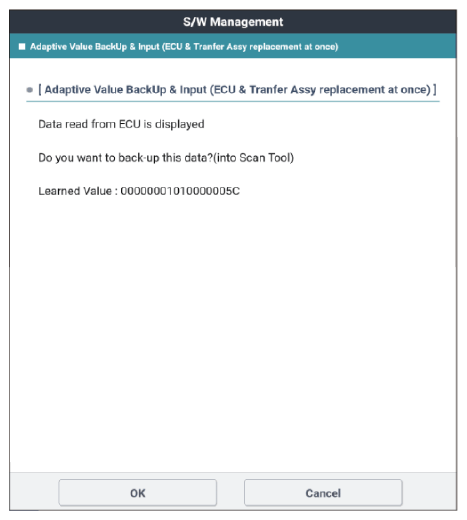

G15719529Courtesy of KIA MOTORS AMERICA, INC.
G15719530Courtesy of KIA MOTORS AMERICA, INC.

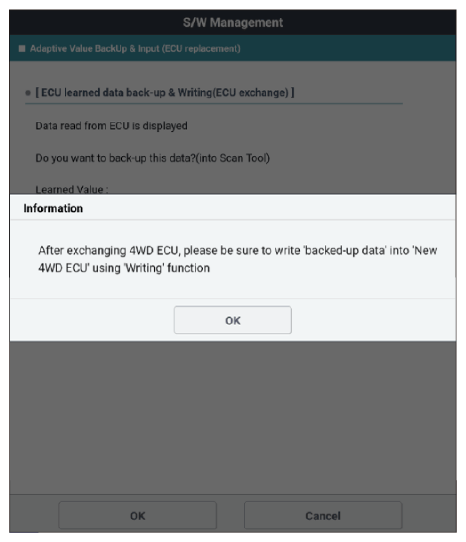

G15719531Courtesy of KIA MOTORS AMERICA, INC.

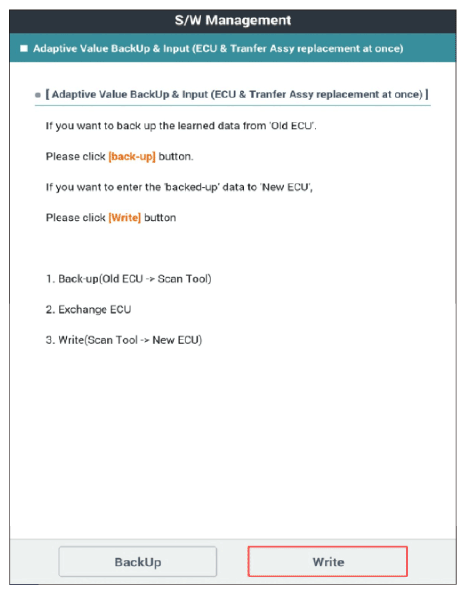

G15719532Courtesy of KIA MOTORS AMERICA, INC.

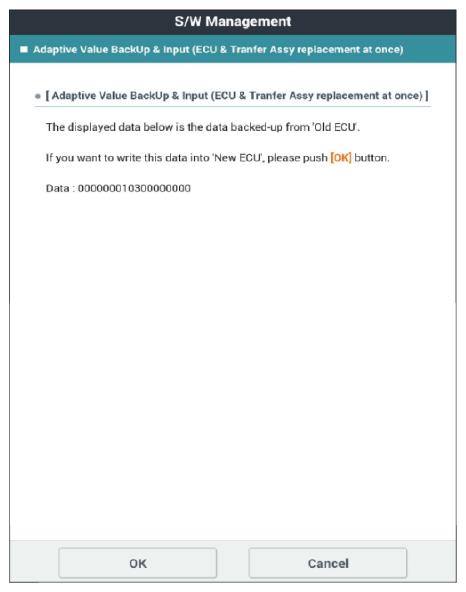

G15719533Courtesy of KIA MOTORS AMERICA, INC.

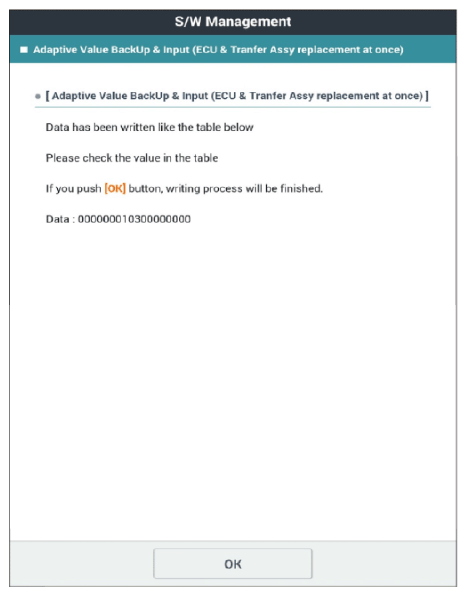

G15719534Courtesy of KIA MOTORS AMERICA, INC.
