Circuit Inspection: Notes

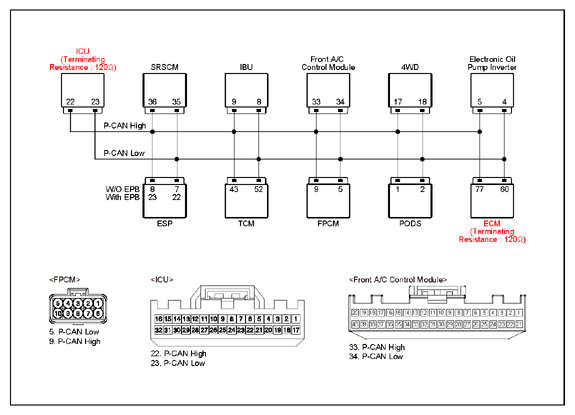

G15727022Courtesy of KIA MOTORS AMERICA, INC.

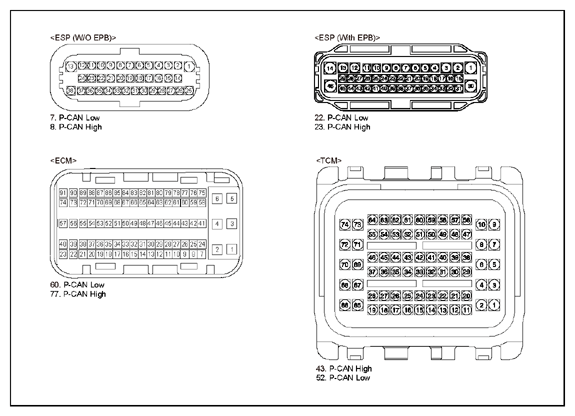

G15727023Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal
  1. Ignition "ON".
  2. Disconnect the electrical connector(s) from the concerned component.
 ECM connector 75 (Memory power) Chassis ground - B+
ECM connector 41 (ON/START Input) Chassis ground - B+
  1. Ignition "OFF".
  2. Disconnect the electrical connector(s) from the concerned component.
 ECM connector 1, 2, 4 (ground) Chassis ground - Approx. below 1Ω
