LEMON Manuals: Even more car manuals for everyone
Home >> Kia >> 2023 >> Telluride EX X-Line >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis (13 Of 13) >> DTC P2B95-00: Cold Start Injection Pulse Performance >> Wiring Inspection >> Circuit Inspection >> Notes

Circuit Inspection: Notes

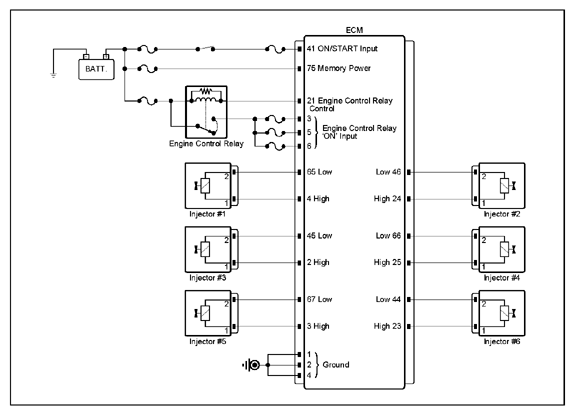

G15726995Courtesy of KIA MOTORS AMERICA, INC.

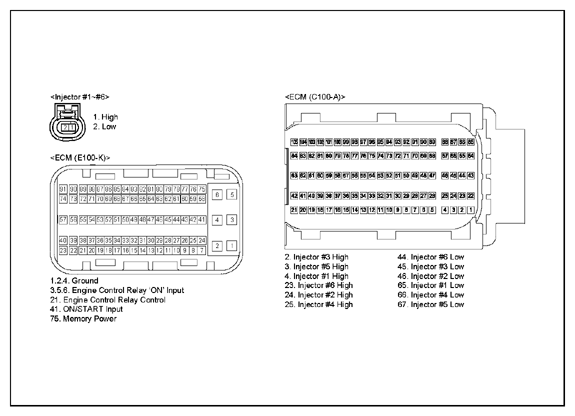

G15726996Courtesy of KIA MOTORS AMERICA, INC.
