Removal & Installation: Removal

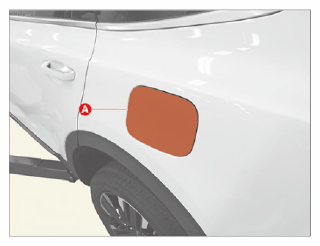

Open the fuel filler door (A).

Courtesy of KIA MOTORS AMERICA, INC.

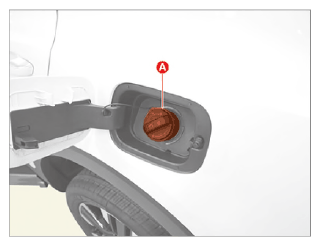

Remove the fuel filler cap (A).

Courtesy of KIA MOTORS AMERICA, INC.

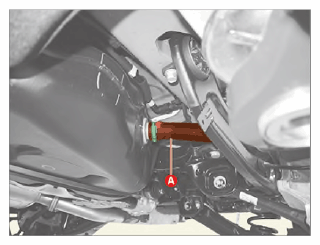

Separate the fuel filler hose (A).
Tightening Torque:

3.9 - 4.9 N.m (0.4 - 0.5 kgf.m, 2.9 - 3.6 lb.ft, 34.7 - 43.4 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.

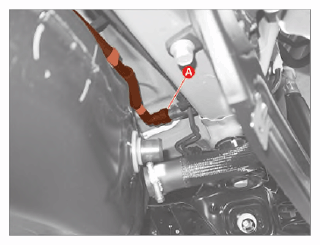

Separate the ventilation tube quick-connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

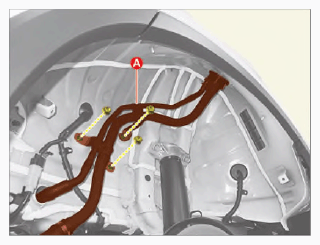

Remove the filler-neck assembly (A) after removing the nuts.
Tightening Torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
