On Vehicle Inspection

Courtesy of KIA MOTORS AMERICA, INC.

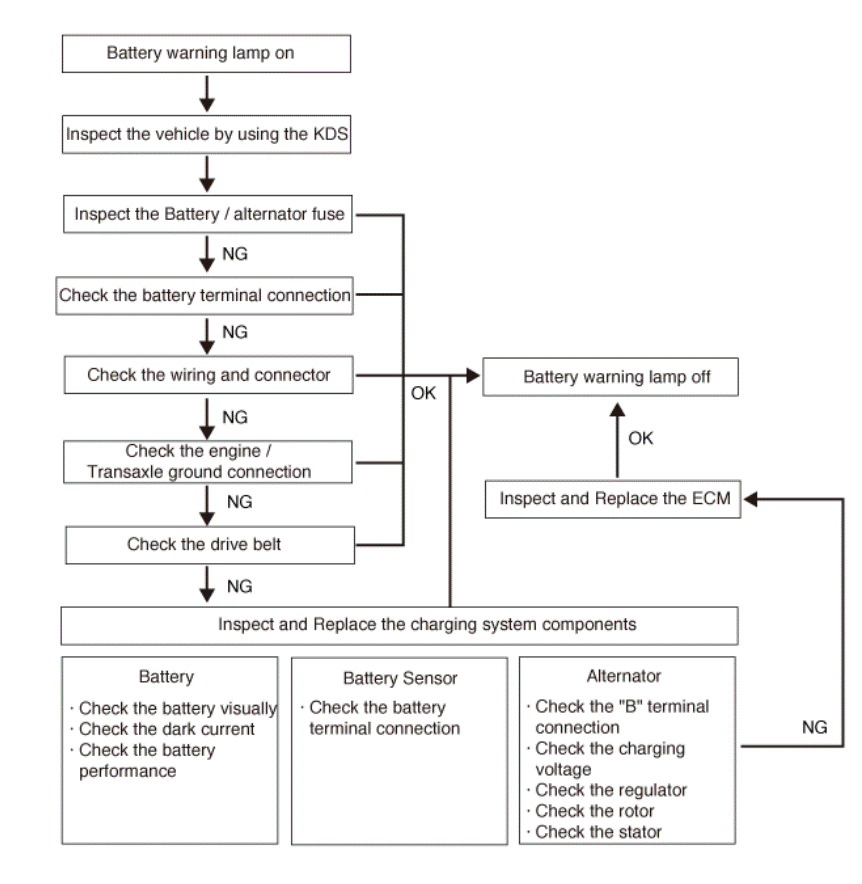

The charging system can be more quickly diagnosed for problems with the KDS (Refer to "DTC guide").
1. Self Diagnosis: Inspect the Diagnostic Trouble Code (DTC) with the KDS
  (Refer to DTC guide when fault code is found)
2. Data analysis: Checking the system input/output data state
  Information

  Refer to the KDS screen for operating conditions and details.
Check the continuity of the fuse (A).
Alternator fuse

Courtesy of KIA MOTORS AMERICA, INC.

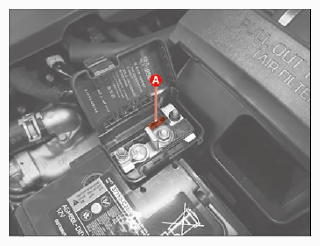

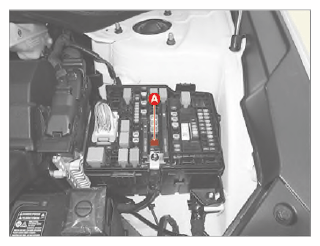

Battery fuse

Courtesy of KIA MOTORS AMERICA, INC.
Check the battery terminal for corrosion and connection.

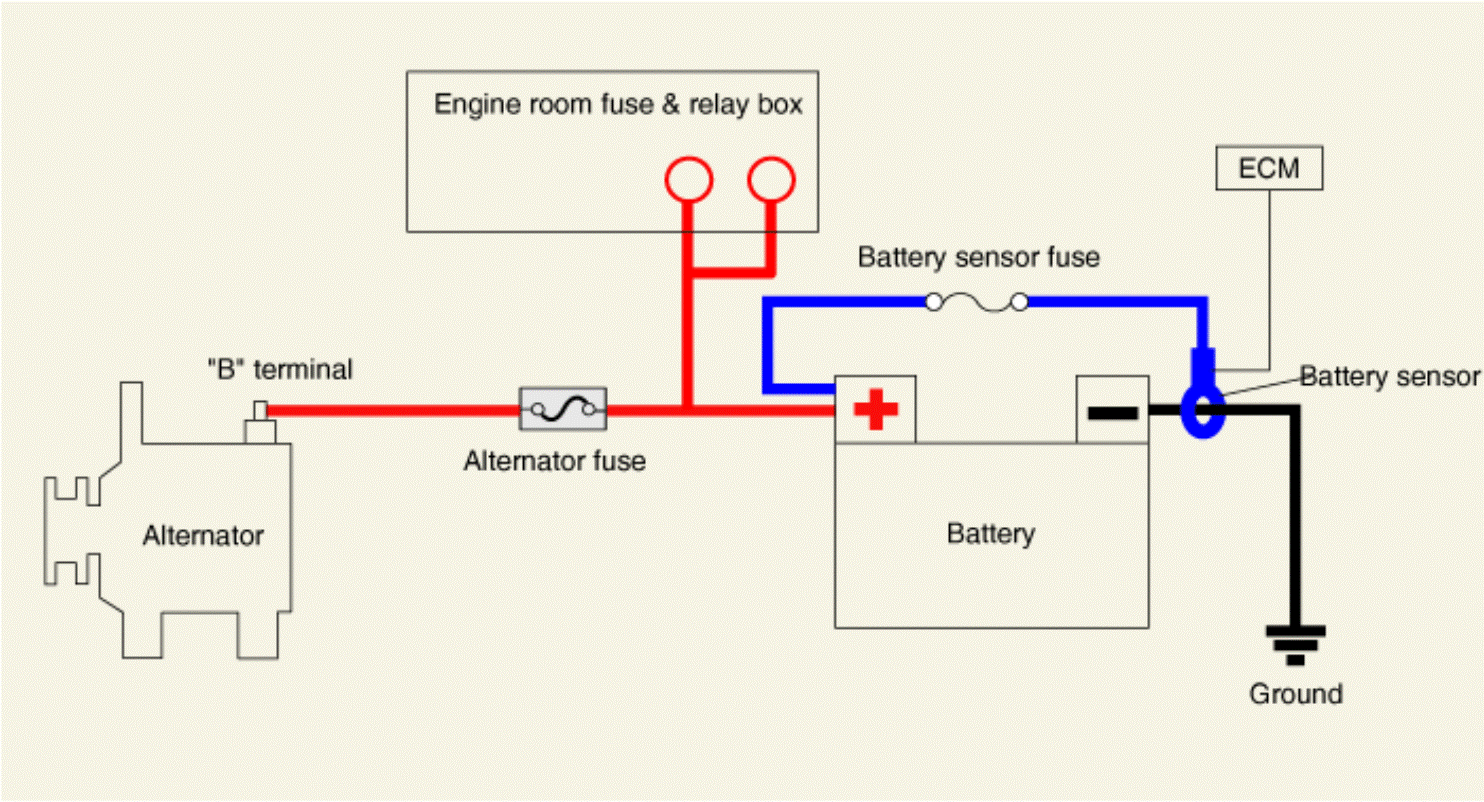

NOTE:
- Check the alternator B+ terminal condition.
- Check the alternator B+ terminal tightening nut.
- Check the battery positive (+), negative (-) terminal condition.
- Check the battery positive (+), negative (-) terminal tightening nut.
- Check the ground cable on the body tightening bolt.
- Check the engine room & relay box positive (+) cable condition.
- Check the engine room & relay box negative (-) cable tightening nut.
- Check the ground connection condition.
Courtesy of KIA MOTORS AMERICA, INC.
Check the connector connection, contact defect, bending, corrosion, deformation or damage.

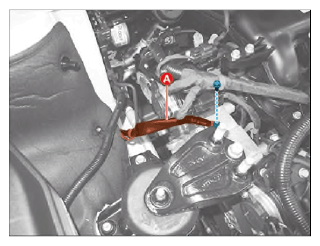

Check the condition of engine ground cable (A) and tight to specified torque.
Tightening torque:

7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

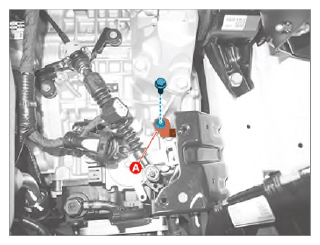

Check the condition of transaxle ground cable (A) and tight to specified torque.
Tightening torque:

26.5 - 32.4 N.m (2.7 - 3.3 kgf.m, 19.5 - 23.9 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

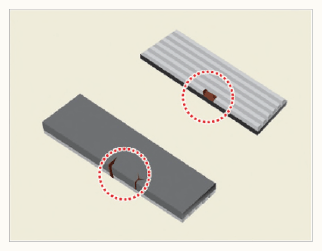

Inspect the drive belt.

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Replace the belt when the belt cracks and damages.
Check the charging system components
- Battery (Refer to Charging System - "BATTERY ")
- Battery sensor (Refer to Charging System - "BATTERY SENSOR ")
- Alternator (Refer to Charging System - "ALTERNATOR ")
- Engine Control Module (ECM) (Refer to Engine Control/Fuel System - "ENGINE CONTROL MODULE (ECM) ")
