Description & Operation: Description

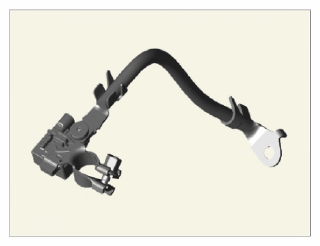

Battery sensor is mounted on the battery negative (-) terminal. It transmits battery voltage, current, temperature information to Engine Control Module (ECM). ECM controls generating voltage by duty cycle based on these signals.

Courtesy of KIA MOTORS AMERICA, INC.
