Removal & Installation: Removal

Disconnect the battery negative (-) terminal.

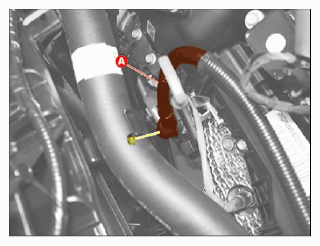

Open the cap and disconnect the alternator B terminal cable (A) after removing the nut.
Tightening torque:

18.6 - 24.5 N.m (1.9 - 2.5 kgf.m, 13.7 - 18.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

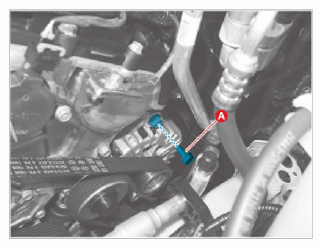

Remove the alternator upper bolt (A).
Tightening torque:

49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the drive belt.
(Refer to Engine Mechanical System - "DRIVE BELT ")
Remove the compressor.
(Refer to Heating, Ventilation And Air Conditioning - "COMPRESSOR ")

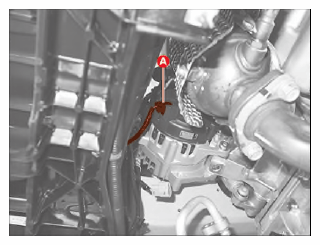

Disconnect the alternator connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

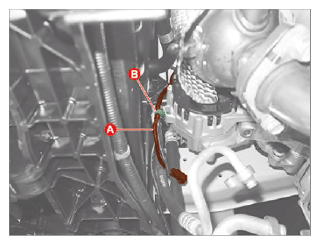

Separate the alternator wiring (A) after removing the clip (B).

Courtesy of KIA MOTORS AMERICA, INC.

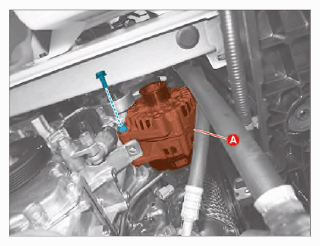

Remove the alternator (A) after removing lower bolt.
Tightening torque:

49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
