Removal & Installation: Installation

  1. Install in reverse order of removal.
NOTE:
  • Install the alternator to the specified torque.
  • If the alternator is dropped, it may cause internal damage. (Do not reuse)

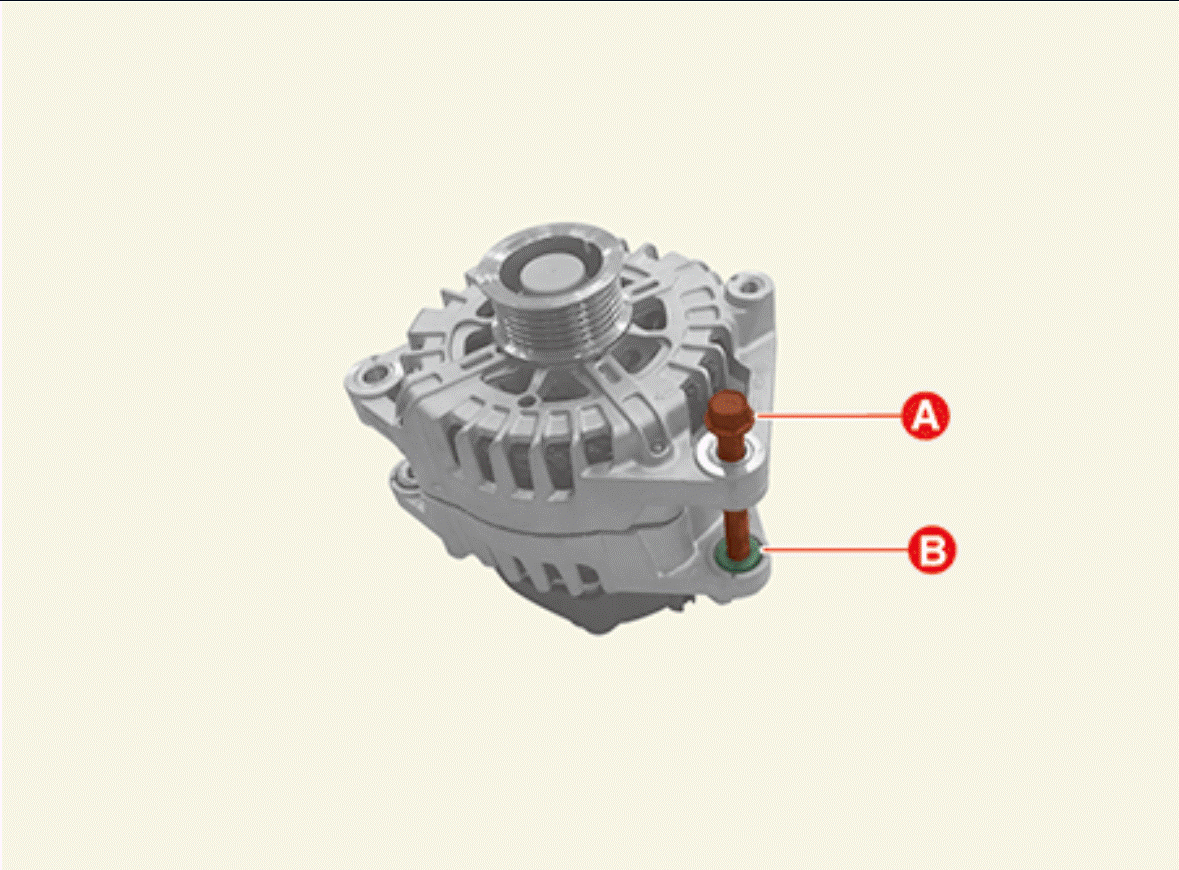

  • Before installing the alternator, move the draft bushing (B) by hitting alternator mounting bolt (A) by using the plastic hammer.
G15693126Courtesy of KIA MOTORS AMERICA, INC.
