Charging System: Alternator: Inspection: [Stator]

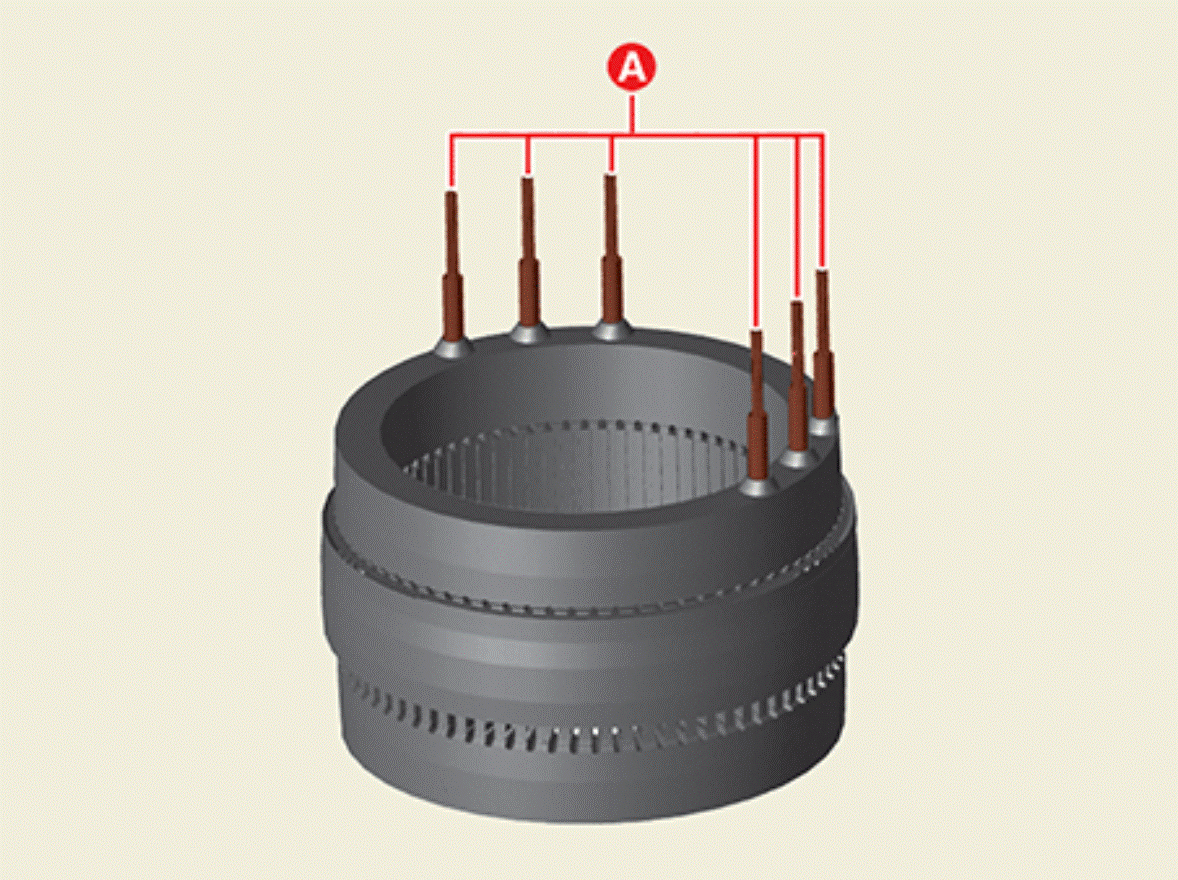

  1. Check for the continuity between each pair of stator coil (A). It is normal if there is continuity.
    G15693136Courtesy of KIA MOTORS AMERICA, INC.
  2. Check for the continuity between the stator coil and the core. It is normal if there is no continuity.
  3. If any one of items 1 and 2 above is defective, replace the stator.
