Disassembly & Reassembly: Disassembly

Remove the pulley cap (A).

Courtesy of KIA MOTORS AMERICA, INC.

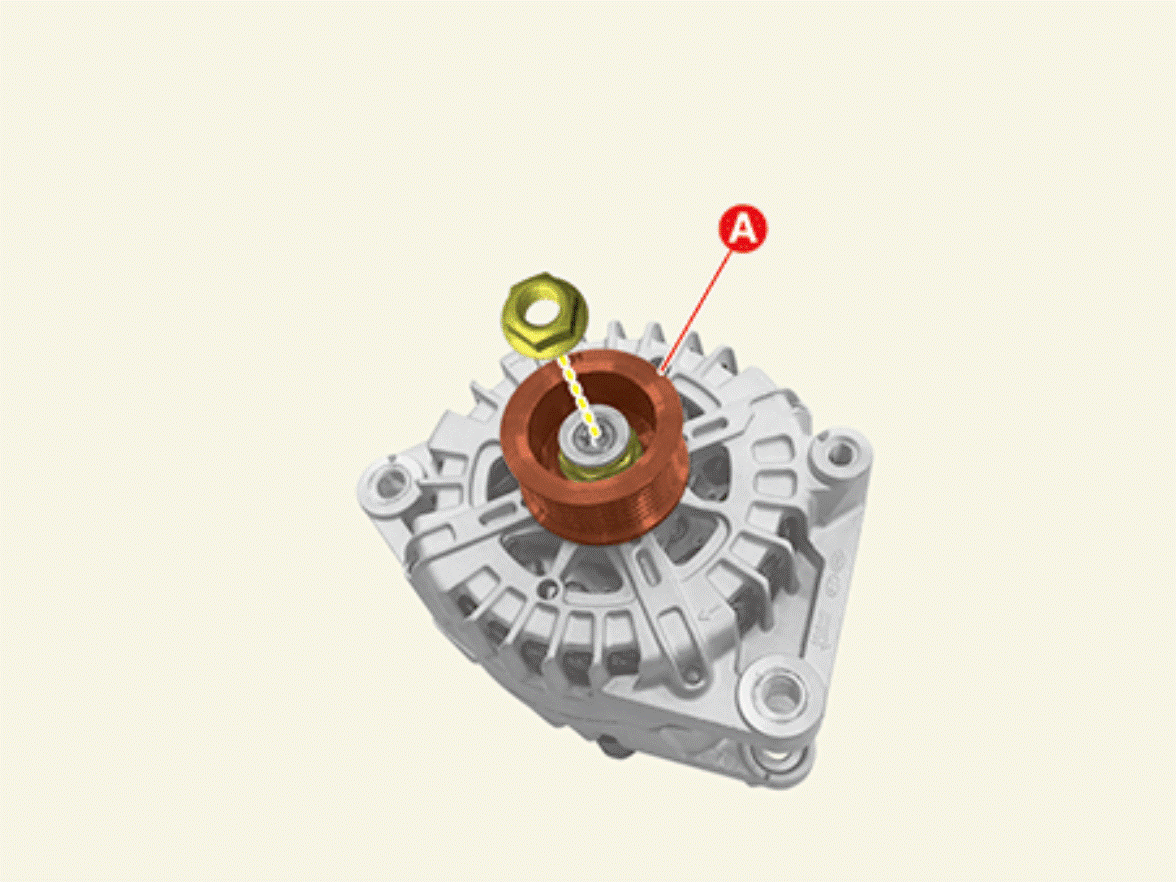

Remove the pulley (A) after removing the nut.
Tightening torque:

75.5 - 81.4 N.m (7.7 - 8.3 kgf.m, 55.7 - 60.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the rear cover (A) after removing the nuts.
Tightening torque:

3.0 - 4.4 N.m (0.31 - 0.45 kgf.m, 2.2 - 3.3 lb.ft, 26.9 - 39.1 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.

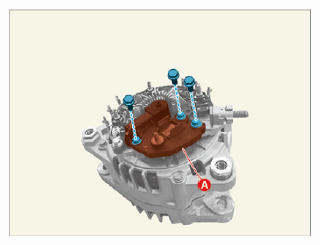

Remove the brush & regulator assembly (A) after removing the bolts.
Tightening torque:

3.0 - 4.4 N.m (0.31 - 0.45 kgf.m, 2.2 - 3.3 lb.ft, 26.9 - 39.1 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.

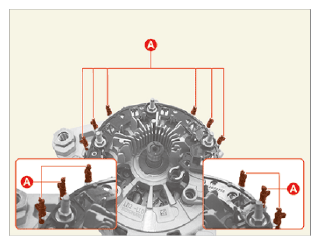

Dissolve the stator leads (A) with the solder.

Courtesy of KIA MOTORS AMERICA, INC.
Remove the rectifier assembly (A) after removing the bolts.
Tightening torque:

4.5 - 5.5 N.m (0.46 - 0.56 kgf.m, 3.3 - 4.1 lb.ft, 39.9 - 48.6 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the front bracket (A).

Courtesy of KIA MOTORS AMERICA, INC.

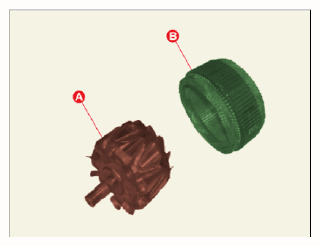

Disassembly the alternator assembly.
A: Rotor

B: Stator

Courtesy of KIA MOTORS AMERICA, INC.
