Repair Procedures: Removal

1. Perform the oil pressure characteristics backup procedure using the KDS when replacing with a new TCM.

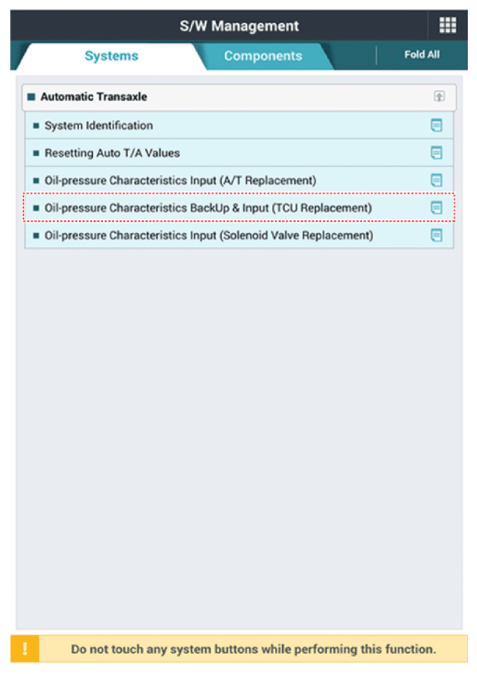

   1. Click the "Oil-pressure Characteristics BackUp & Input (TCU Replacement)".

      Courtesy of KIA MOTORS AMERICA, INC.

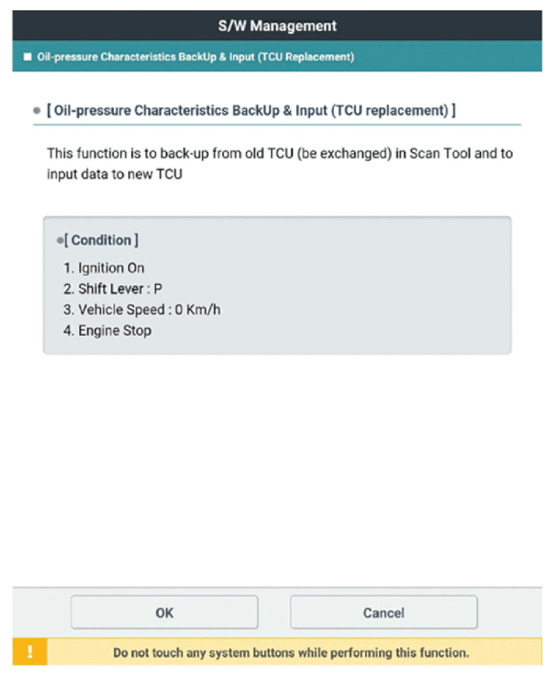

   2. Check the condition and then click the "OK".

      Courtesy of KIA MOTORS AMERICA, INC.

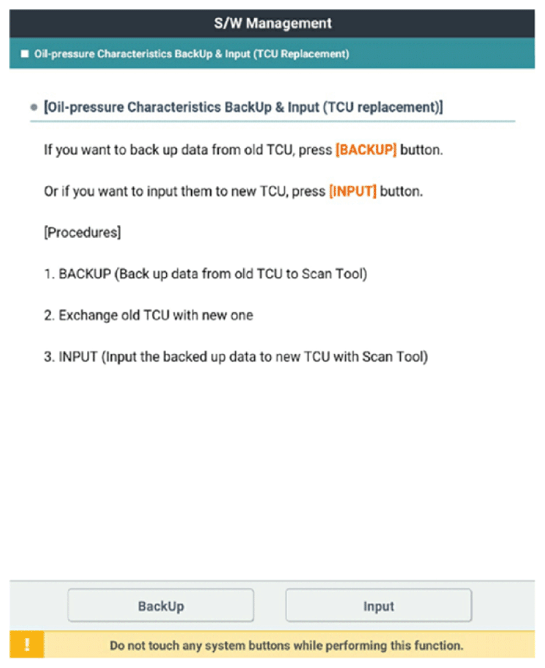

   3. Click the "BackUp".

   Courtesy of KIA MOTORS AMERICA, INC.

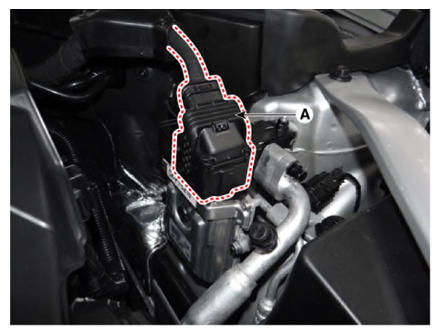

2. Disconnect the TCM connector (A).

   Courtesy of KIA MOTORS AMERICA, INC.

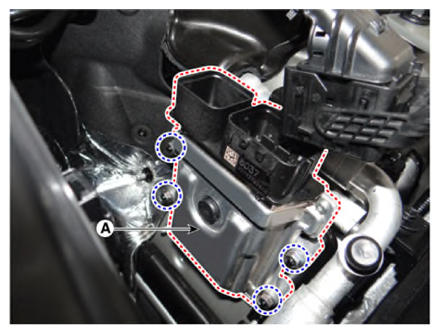

3. Remove the TCM (A) after removing the nuts.

Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
