Repair Procedures: Installation

  1. Install in the reverse order of removal.

    Spark Plug:

    19.6 - 29.4 N.m (2.0 - 3.0 kgf.m, 14.5 - 21.7 lb.ft)

    NOTE:
    • Install the spark plug with the specified torque.
    • Be careful not to damage external electrode when installing the spark plug.
    • If spark plug is dropped, it may cause internal damage. Do not use it.
    • When assembling the parts, clean the contaminated area (A) with the cloth.
      • The cloth should be clean, free of contaminants, and soft enough to not damage the parts.

        (When replacing ignition coil and spark plug together, cleaning is not required.)

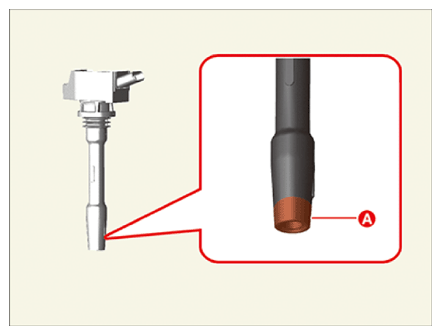

      G14999687Courtesy of KIA MOTORS AMERICA, INC.

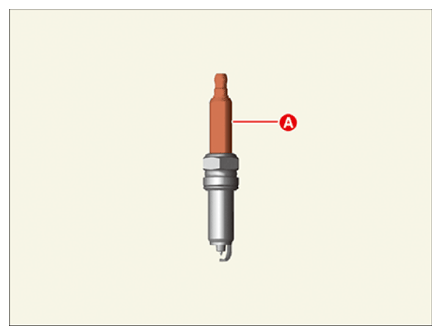

      G14999688Courtesy of KIA MOTORS AMERICA, INC.
