Tailgate Open Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the tailgate back panel.

    (Refer to Body - "TAILGATE BACK PANEL ")

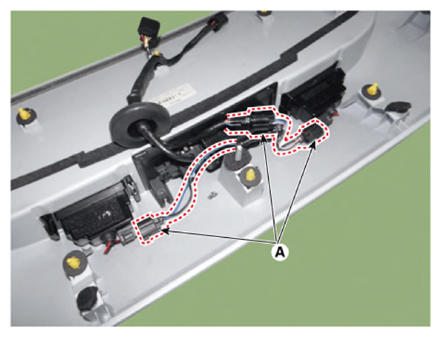

  3. Disconnect the license lamp connectors (A).
    G14998455Courtesy of KIA MOTORS AMERICA, INC.

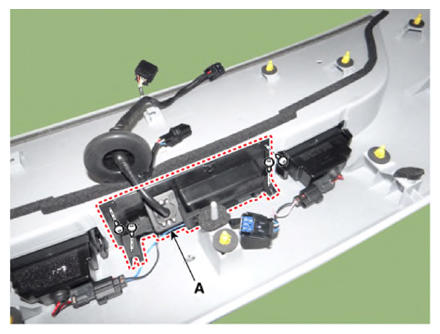

  4. Remove the tailgate outside handle assembly (A) after loosening the mounting screws.
    G14998456Courtesy of KIA MOTORS AMERICA, INC.

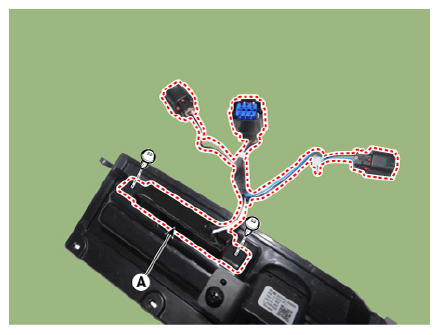

  5. Remove the tailgate open switch (A) after loosening the mounting screws.
G14998457Courtesy of KIA MOTORS AMERICA, INC.
