Neutralization Status Check

Connect the cable of KDS to the data link connector in driver side crash pad lower panel.
After IG ON, select the "Neutralization mode".

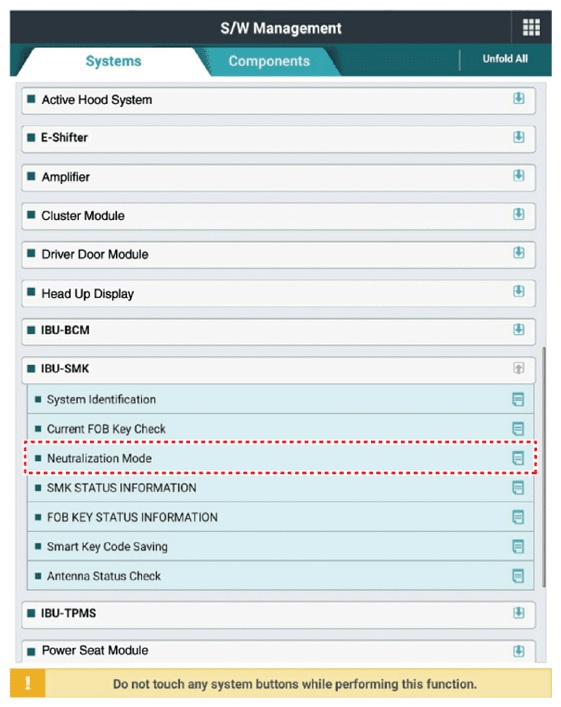

G14998484

Courtesy of KIA MOTORS AMERICA, INC.

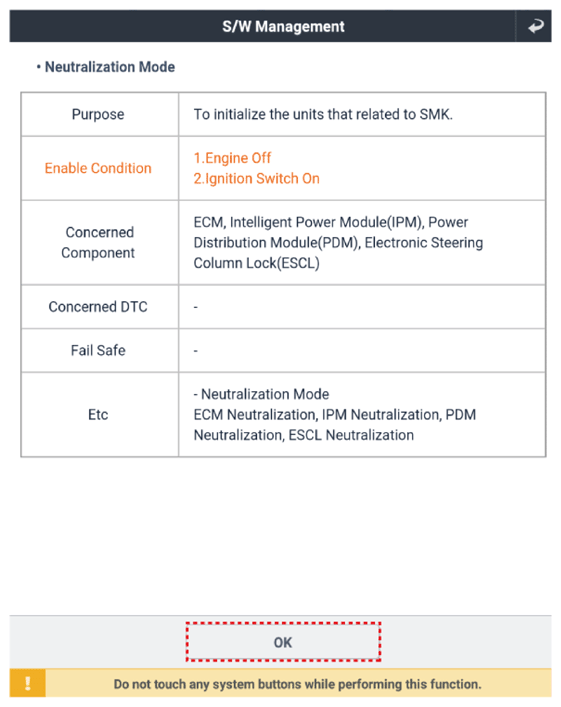

G14998485

Courtesy of KIA MOTORS AMERICA, INC.

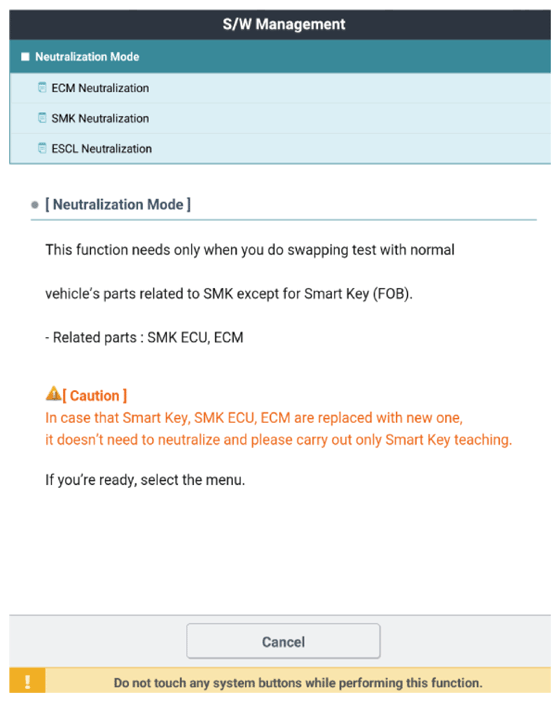

G14998486

Courtesy of KIA MOTORS AMERICA, INC.

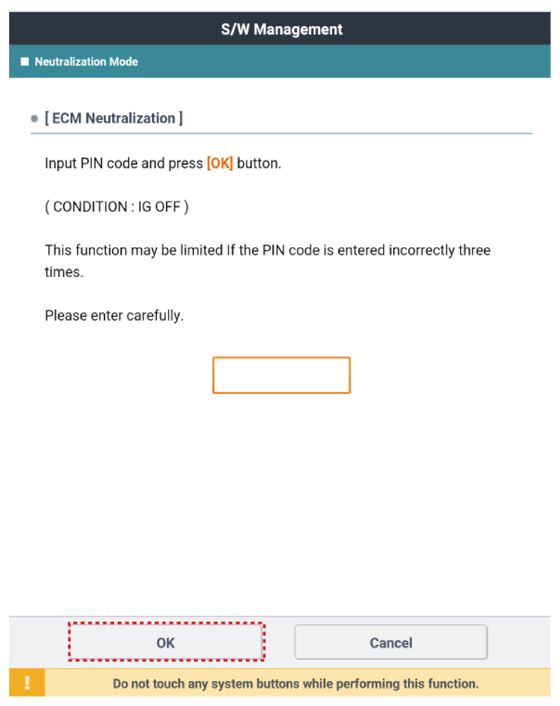

G14998487

Courtesy of KIA MOTORS AMERICA, INC.

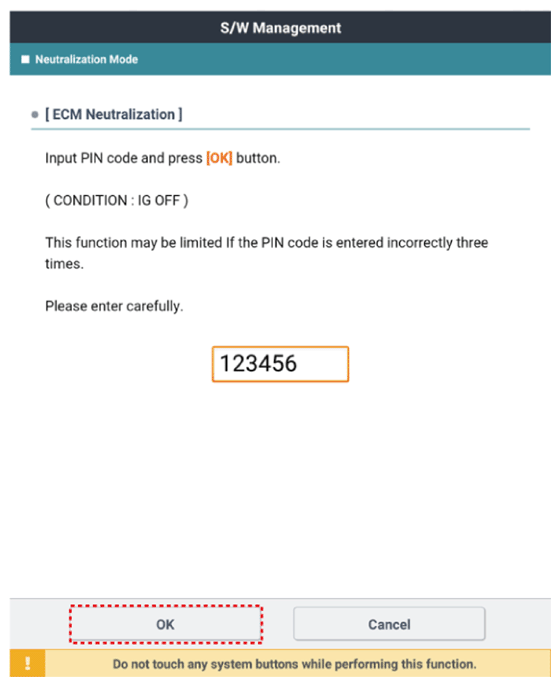

G14998488

Courtesy of KIA MOTORS AMERICA, INC.

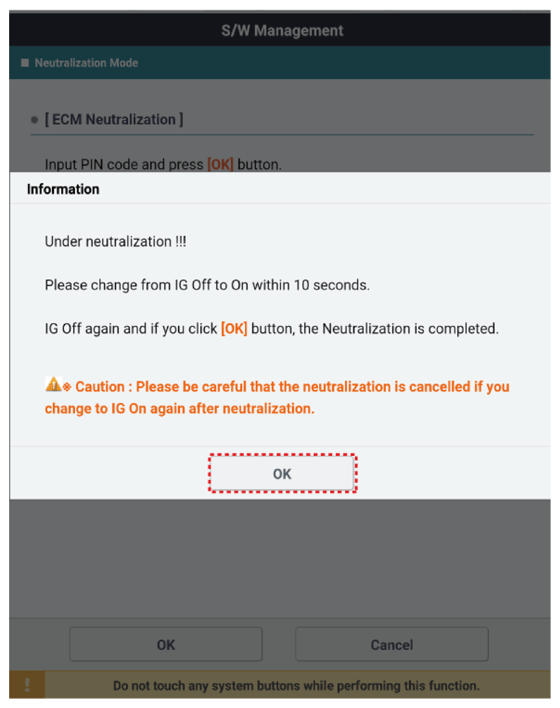

G14998489

Courtesy of KIA MOTORS AMERICA, INC.

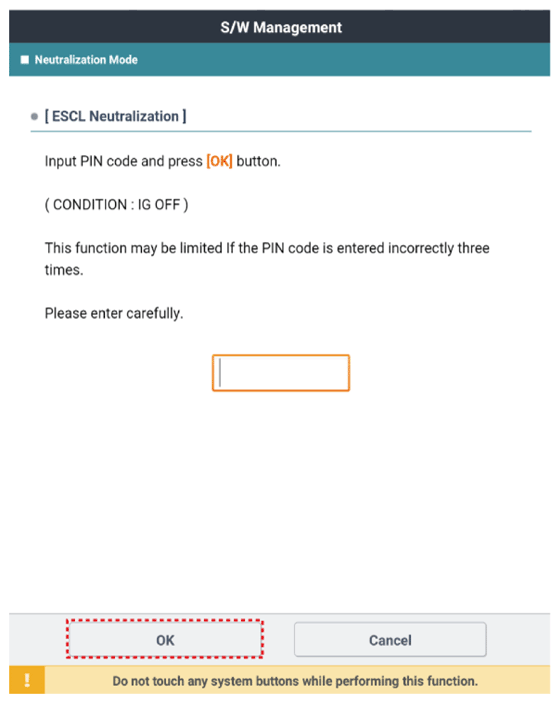

G14998490

Courtesy of KIA MOTORS AMERICA, INC.

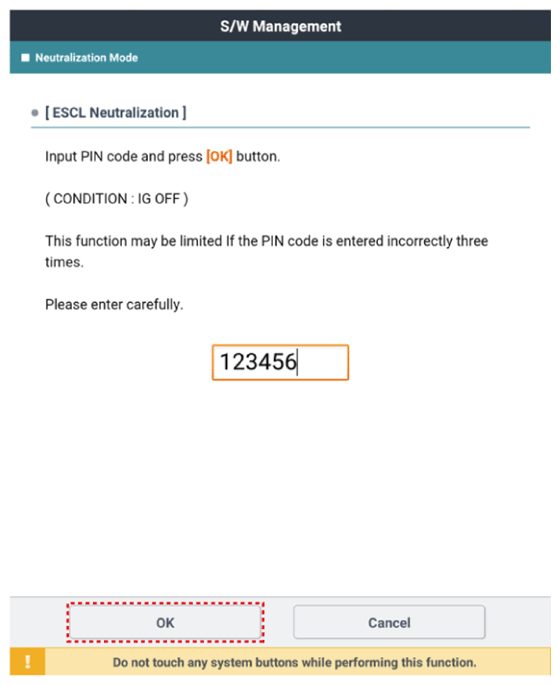

G14998491

Courtesy of KIA MOTORS AMERICA, INC.

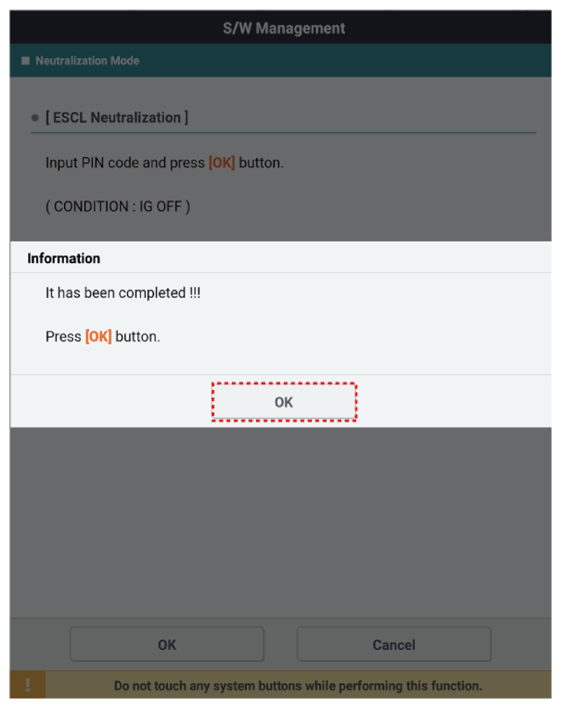

G14998492

Courtesy of KIA MOTORS AMERICA, INC.

G14998493

Courtesy of KIA MOTORS AMERICA, INC.

G14998494

Courtesy of KIA MOTORS AMERICA, INC.

G14998495

Courtesy of KIA MOTORS AMERICA, INC.
