Ignition Coil: Troubleshooting: Notes
Connector assembly status test

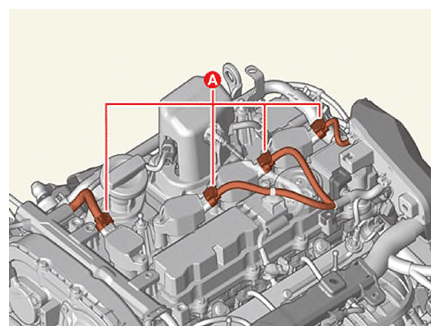

Disconnect the connectors (A) and reconnect it.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
