Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS.

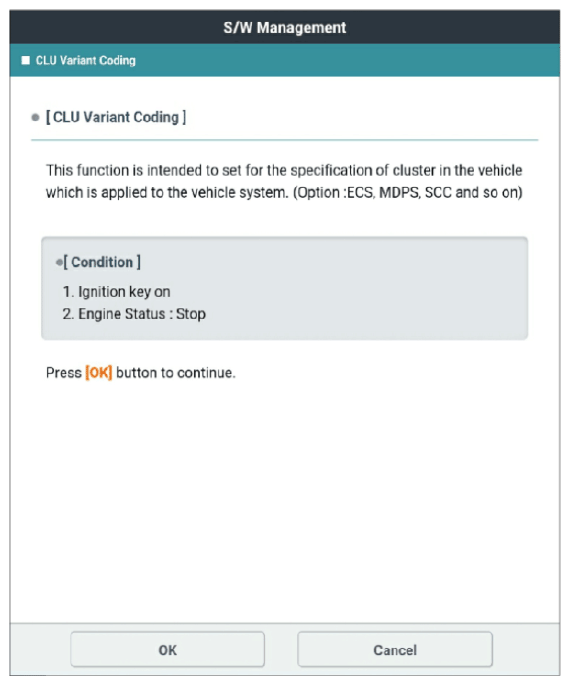

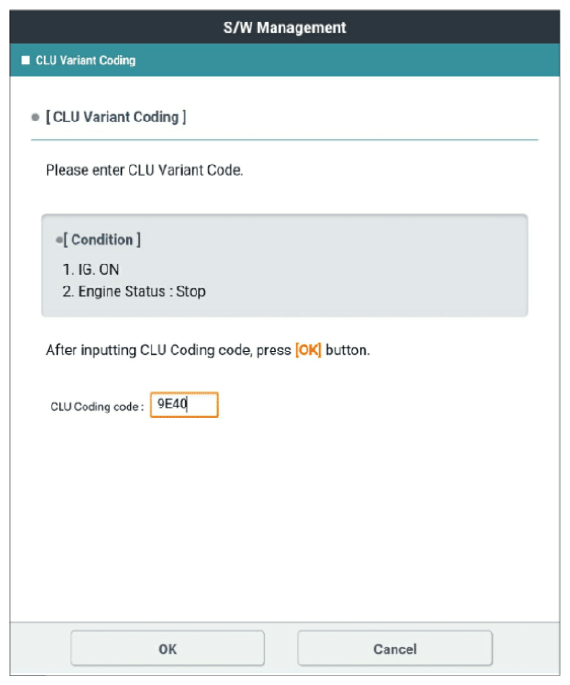

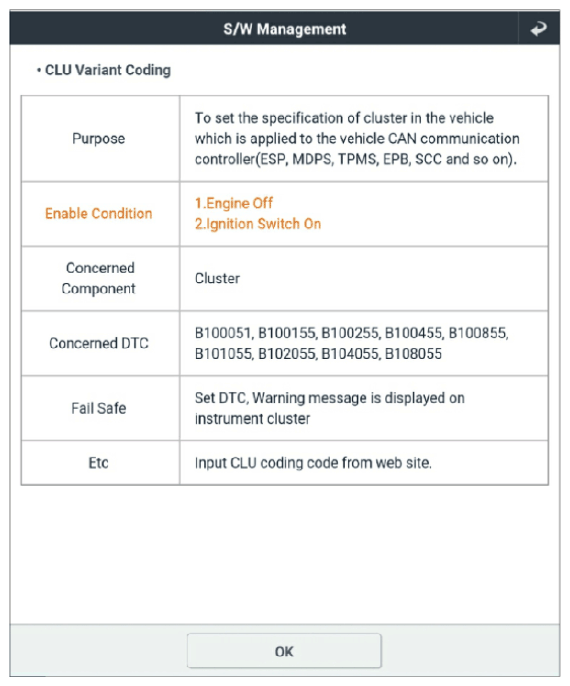

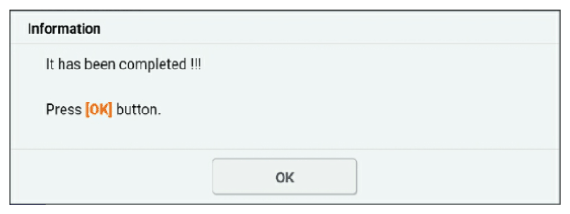

 Fig.1 to 4
G14971389Courtesy of KIA MOTORS AMERICA, INC.
G14971390Courtesy of KIA MOTORS AMERICA, INC.
G14971391Courtesy of KIA MOTORS AMERICA, INC.
G14971392Courtesy of KIA MOTORS AMERICA, INC.
