Smart Key Code Saving

  1. Connect the DLC cable of KDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on KDS.

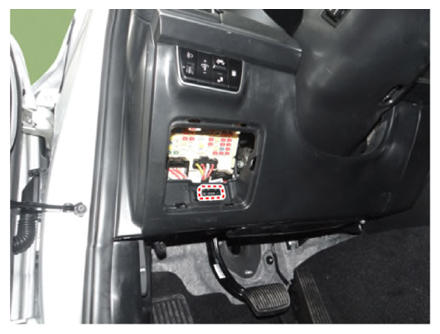

    G14998431Courtesy of KIA MOTORS AMERICA, INC.
  2. Select the vehicle model and then do "Smart key code saving".

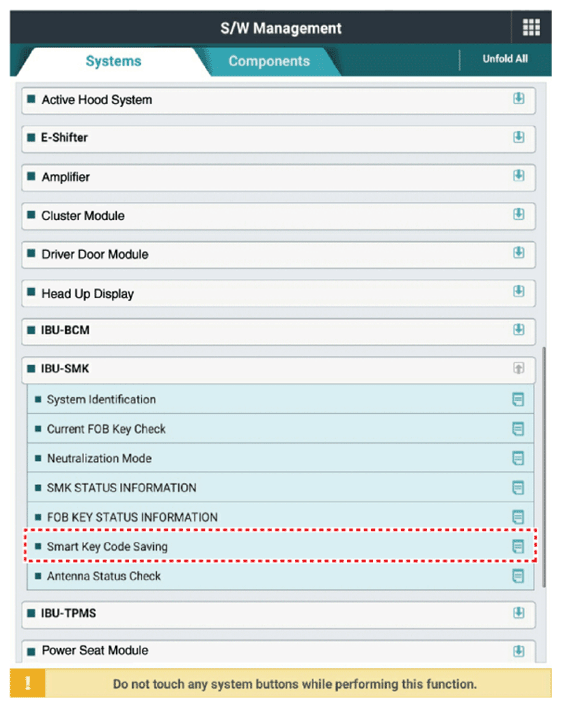

    G14998432Courtesy of KIA MOTORS AMERICA, INC.

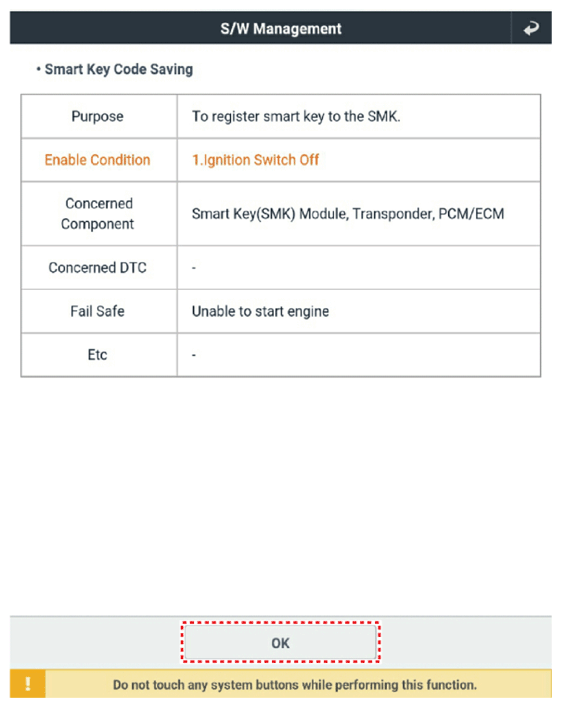

    G14998433Courtesy of KIA MOTORS AMERICA, INC.

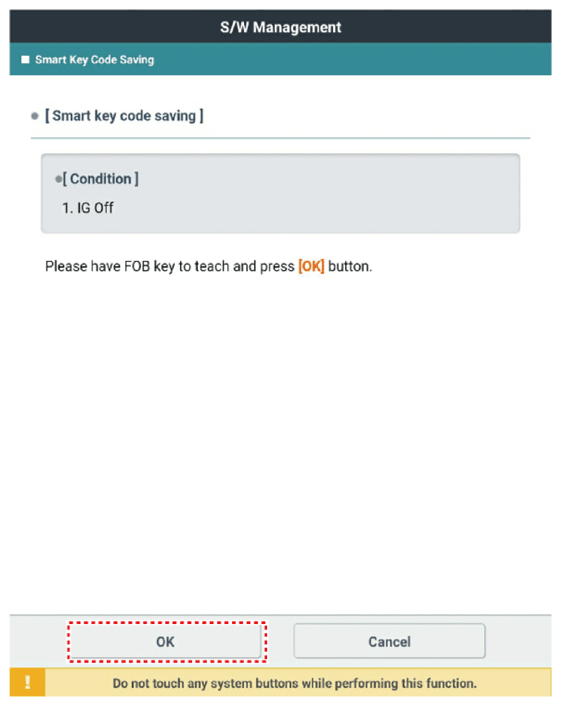

  3. After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be shown as below.
    G14998434Courtesy of KIA MOTORS AMERICA, INC.
  4. After having the teaching smart key, push "ENTER" key.

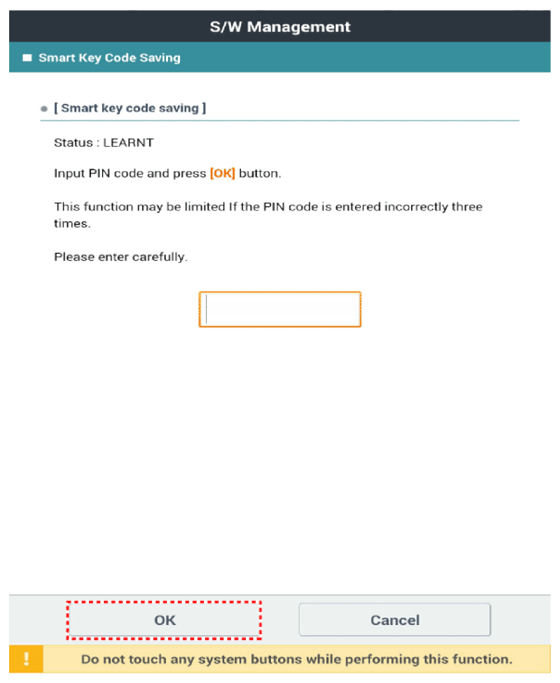

  5. Input the "Pin code" for first key teaching.
    G14998435Courtesy of KIA MOTORS AMERICA, INC.

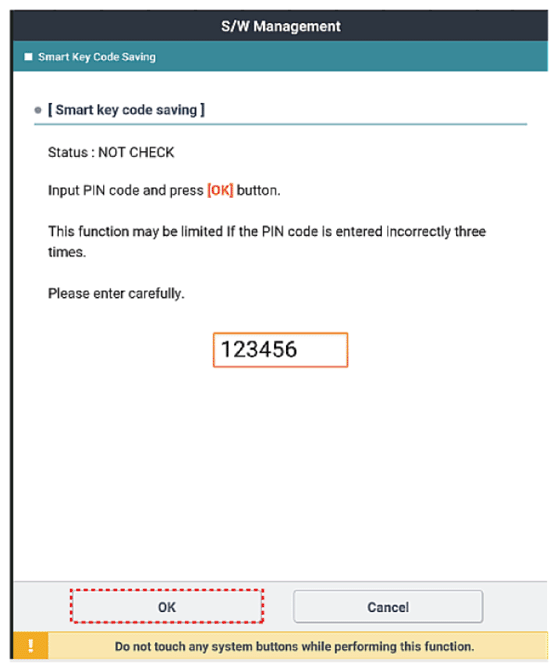

    G14998436Courtesy of KIA MOTORS AMERICA, INC.

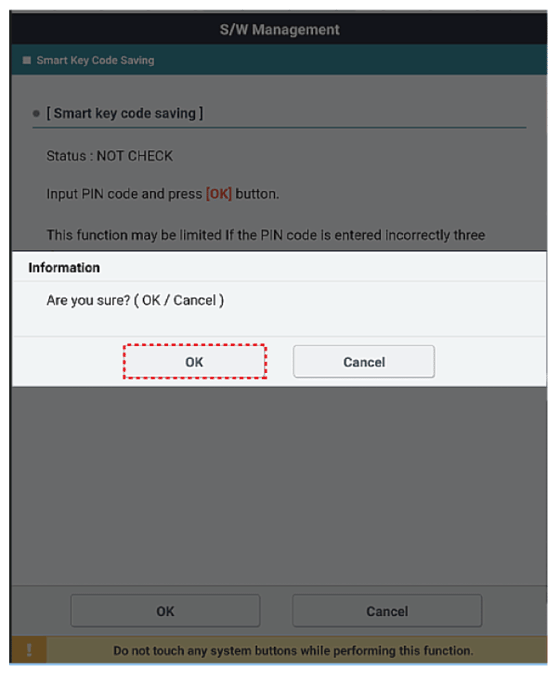

    G14998437Courtesy of KIA MOTORS AMERICA, INC.

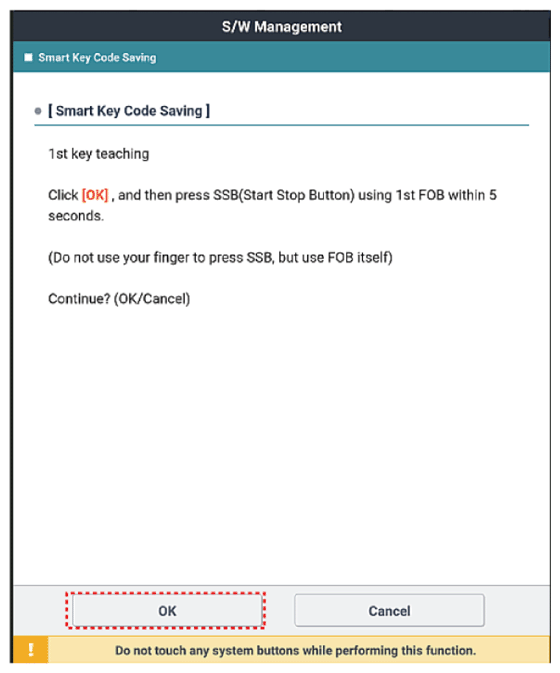

  6. Confirm the message "First key teaching completed".
    G14998438Courtesy of KIA MOTORS AMERICA, INC.
  7. Press the SSB with smart key within 5 sec after pressing "OK".

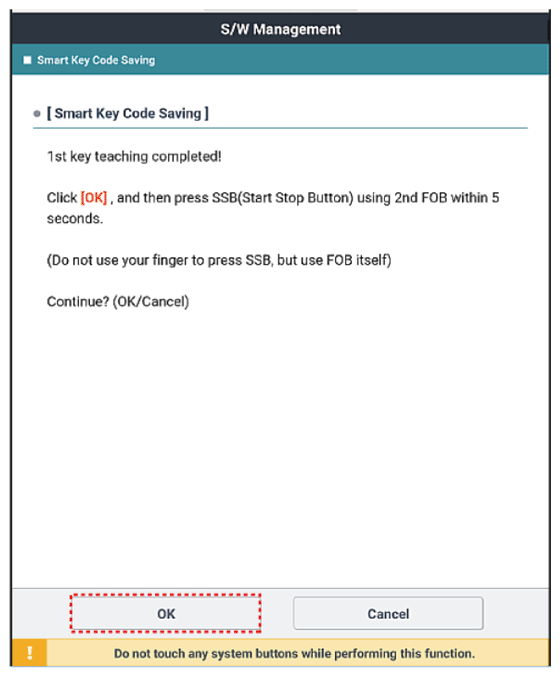

    G14998439Courtesy of KIA MOTORS AMERICA, INC.
  8. Confirm the message "Second key teaching completed".

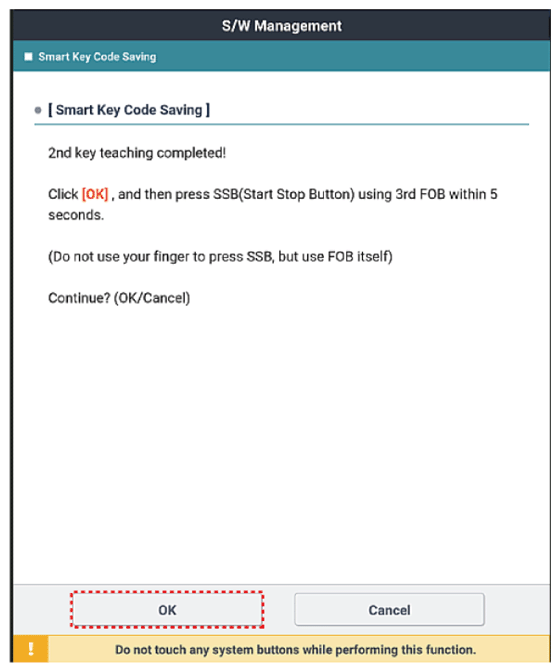

    G14998440Courtesy of KIA MOTORS AMERICA, INC.

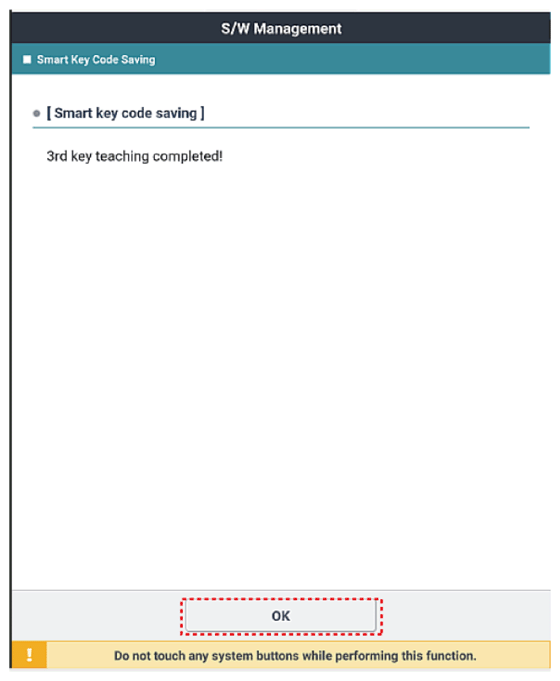

    G14998441Courtesy of KIA MOTORS AMERICA, INC.

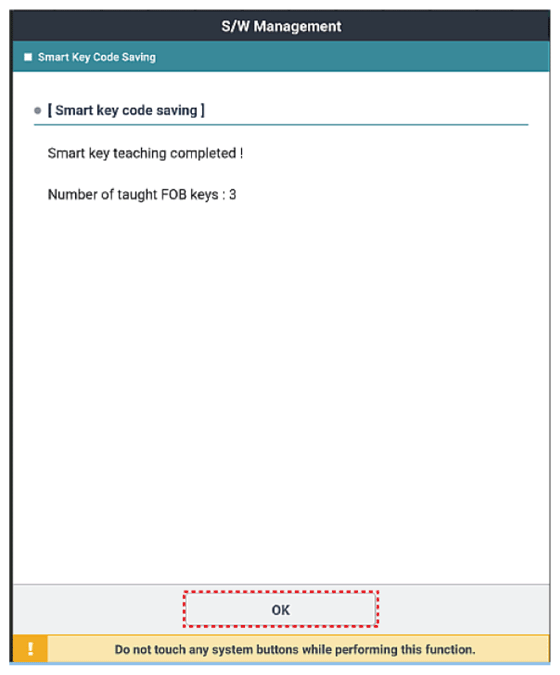

  9. Then the screen will be shown as below when key teaching process is completed.
G14998442Courtesy of KIA MOTORS AMERICA, INC.
