Tailgate Antenna

  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear transverse trim.

    (Refer to Body - " REAR TRANSVERSE TRIM  ")

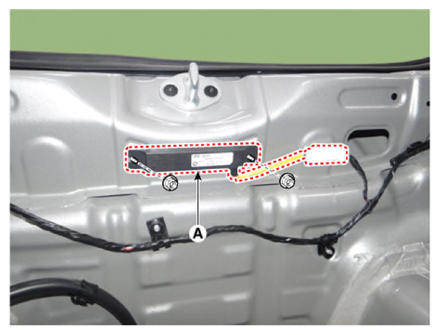

  3. Remove the tailgate antenna (A) after disconnecting the connector and loosening the mounting nuts.
G14998450Courtesy of KIA MOTORS AMERICA, INC.
