Integrated Body control Unit (IBU)

  1. Disconnect the negative (-) battery terminal.
  2. Remove the glove box housing.

    (Refer to Body - "GLOVE BOX HOUSING ")

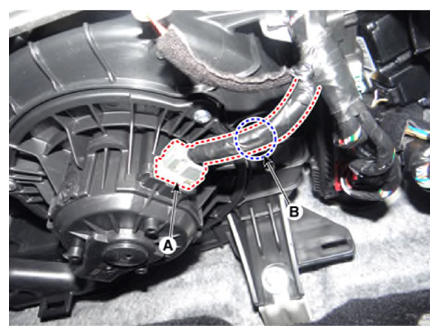

  3. Disconnect the blower motor connector (A) after removing the mounting clip (B).
    G14998444Courtesy of KIA MOTORS AMERICA, INC.

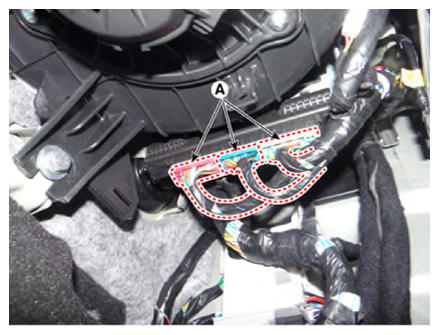

  4. Disconnect the integrated body control unit connectors (A).
    G14998445Courtesy of KIA MOTORS AMERICA, INC.

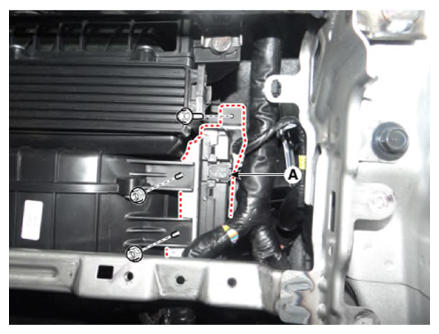

  5. Remove the integrated body control unit (A) after loosening the mounting nuts and bolt.
    G14998446Courtesy of KIA MOTORS AMERICA, INC.

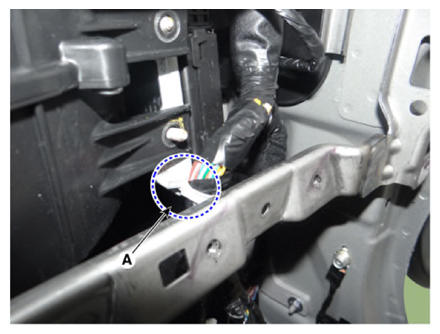

  6. Remove the wiring harness mounting clip (A) from the integrated body control unit.
G14998447Courtesy of KIA MOTORS AMERICA, INC.
