Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the tailgate trim.

    (Refer to Body - "TAILGATE TRIM ")

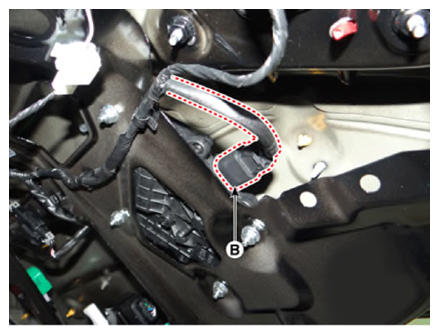

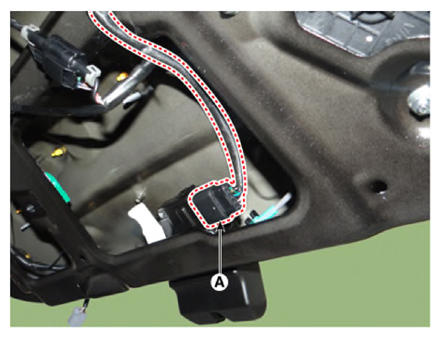

  3. Disconnect the power tailgate latch connector (A) and power closing unit connector (B).
    G14998332Courtesy of KIA MOTORS AMERICA, INC.
    G14998333Courtesy of KIA MOTORS AMERICA, INC.

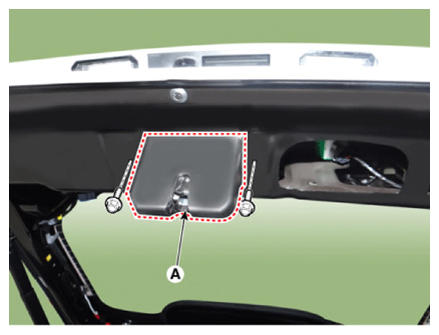

  4. Loosen the power tailgate latch (A) mounting bolts.
    G14998334Courtesy of KIA MOTORS AMERICA, INC.

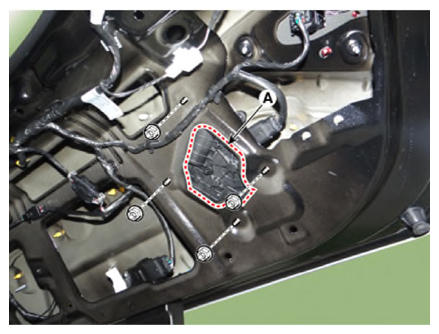

  5. Loosen the power closing unit (A) mounting nuts.
    G14998335Courtesy of KIA MOTORS AMERICA, INC.

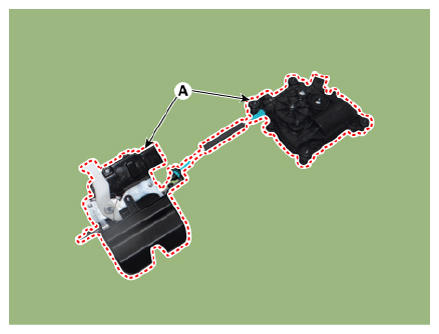

  6. Remove the power tailgate latch & power closing unit (A).
G14998336Courtesy of KIA MOTORS AMERICA, INC.
