Repair Procedures: Removal

WARNING: This page is about a different car, the 2025 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal.

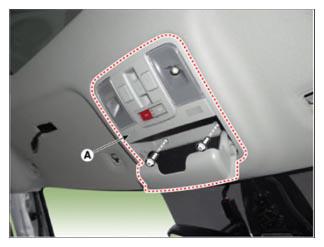

  2. Remove the overhead console lamp (A) after loosening the screws.
    G15716942Courtesy of KIA MOTORS AMERICA, INC.

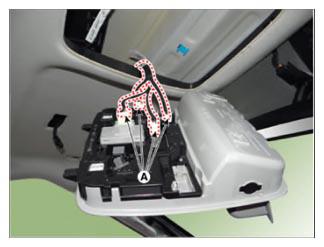

  3. Disconnect the connectors (A) from the overhead console lamp.
    G15716943Courtesy of KIA MOTORS AMERICA, INC.

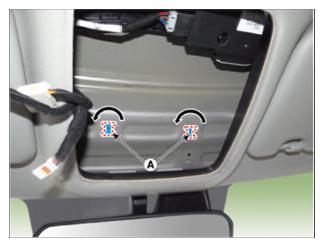

  4. Remove the room lamp mounting clips (A).
G15716944Courtesy of KIA MOTORS AMERICA, INC.
