Home >> Kia >> 2023 >> Soul EX >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Hydraulic System >> Line Pressure Control Solenoid Valve (LINE_VFS) >> Components & Components Location >> Component

Components & Components Location: Component

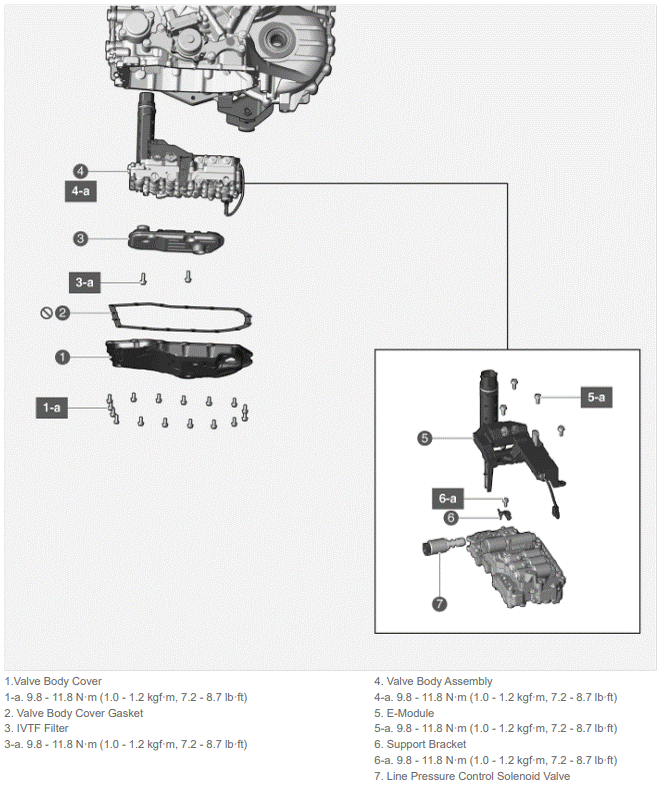

Fig 1: Line Pressure Control Solenoid Valve Components Location With Torque Specifications

G15694811

Courtesy of KIA MOTORS AMERICA, INC.
