Smart Key Diagnosis

WARNING: This page is about a different car, the 2025 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect VCI to the vehicle. (IG OFF)
  2. SMK sensor data check in KDS.
  3. Operate the key buttons. (Lock, Unlock, Remote start)
  4. Check if the key works.

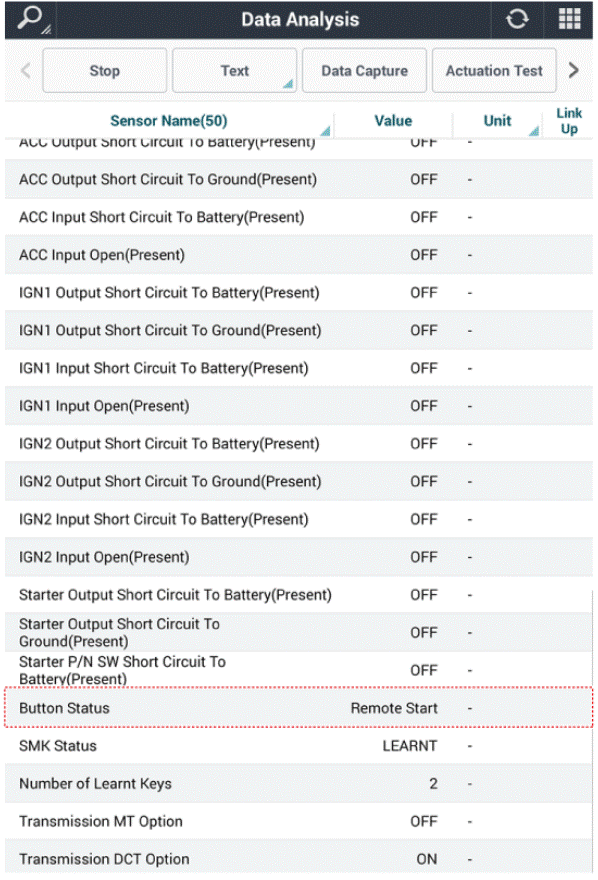

G15717134Courtesy of KIA MOTORS AMERICA, INC.

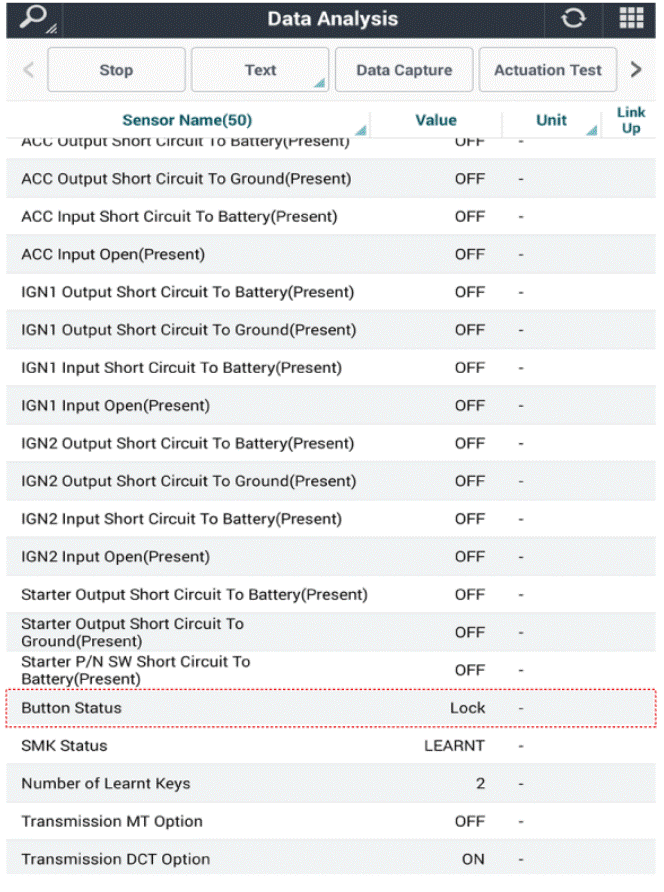

G15717135Courtesy of KIA MOTORS AMERICA, INC.

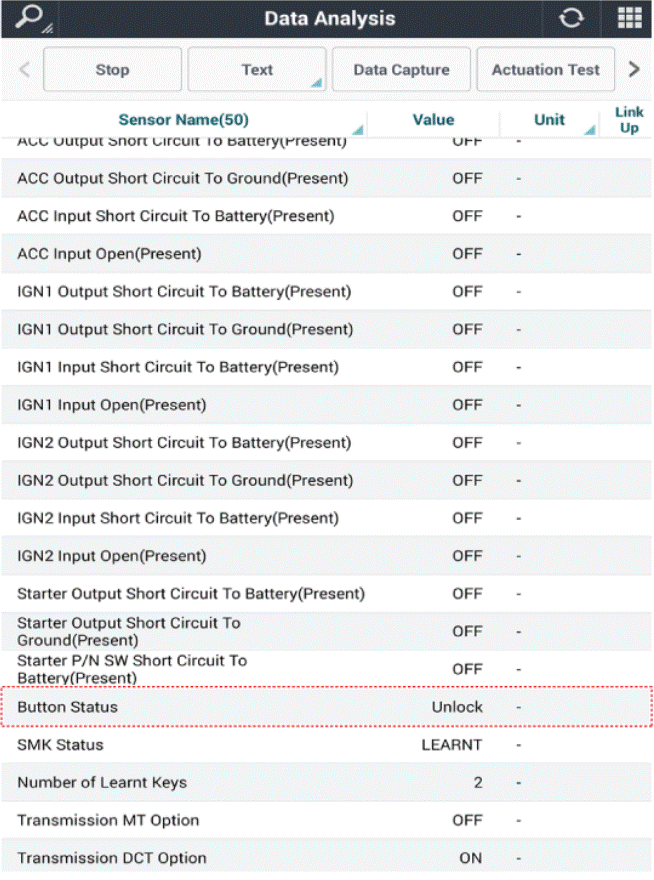

G15717136Courtesy of KIA MOTORS AMERICA, INC.
