FOB Status Check

WARNING: This page is about a different car, the 2025 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the cable of KDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "FOB KEY STATUS INFO".

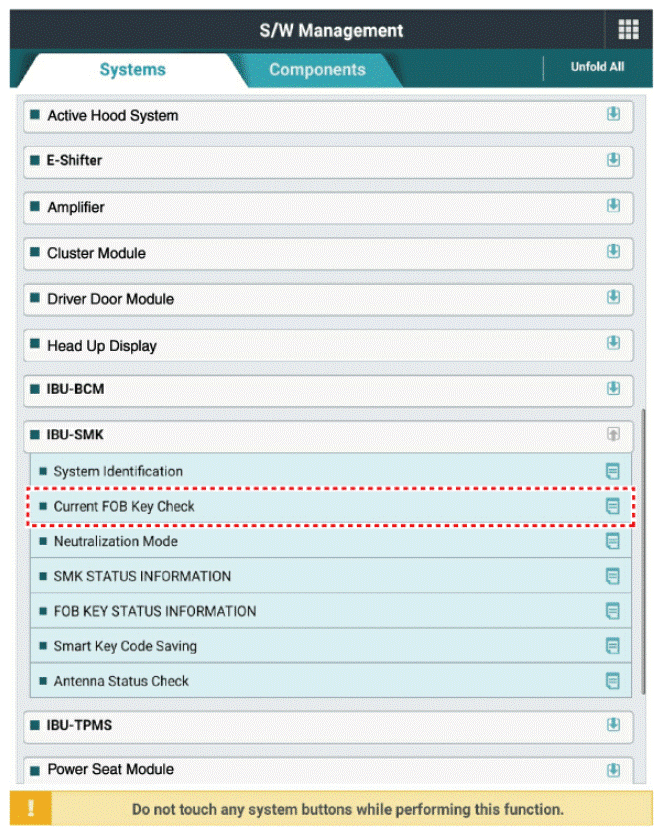

G15717150Courtesy of KIA MOTORS AMERICA, INC.

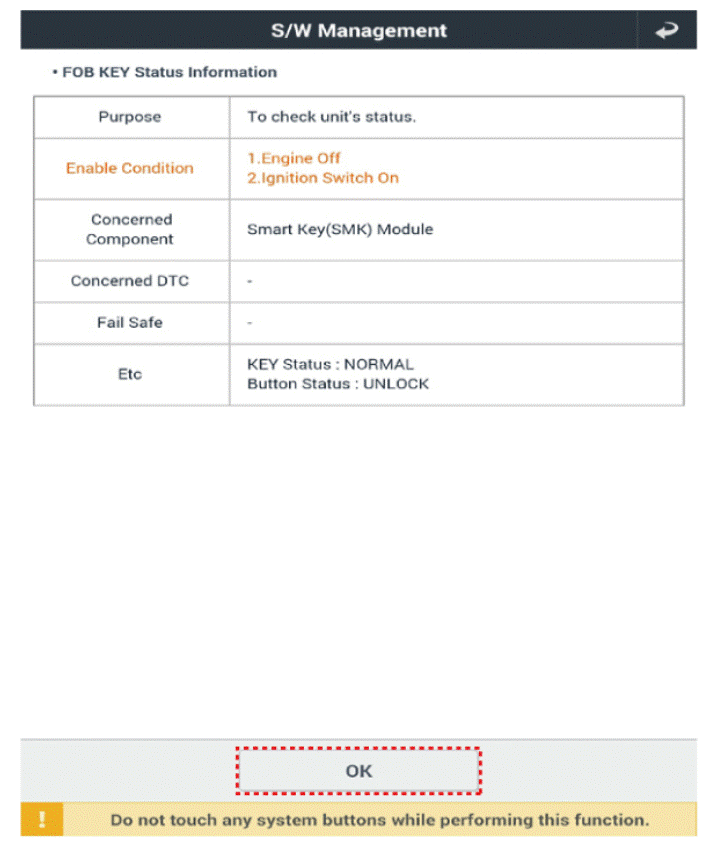

G15717151Courtesy of KIA MOTORS AMERICA, INC.

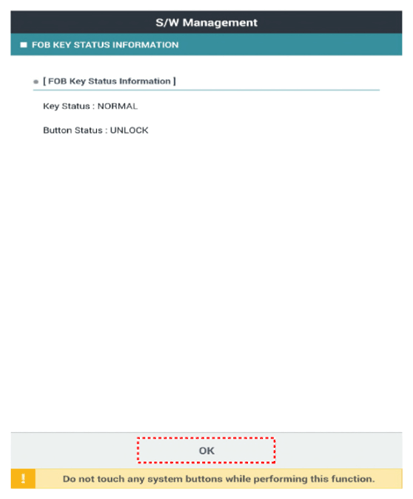

G15717152Courtesy of KIA MOTORS AMERICA, INC.
