Repair Procedures: Removal

  1. Release the residual pressure in fuel line.

    (Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ").

  2. Remove the rear seat cushion.

    (Refer to Body - "REAR SEAT ASSEMBLY ")

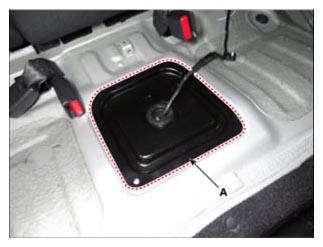

  3. Remove the fuel pump service cover (A).
    G15694590Courtesy of KIA MOTORS AMERICA, INC.

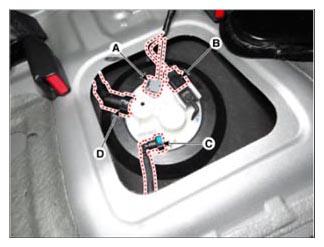

  4. Disconnect the fuel pump connector (A) and the fuel tank pressure sensor connector (B).
  5. Disconnect the fuel feed tube quick-connector (C).
  6. Disconnect the vapor tube quick-connector (D).
    G15694591Courtesy of KIA MOTORS AMERICA, INC.
  7. Lift the vehicle and support the fuel tank with a jack.

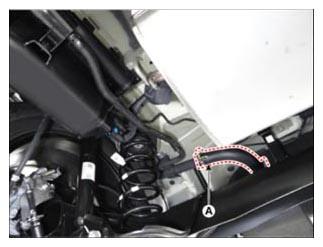

  8. Disconnect the fuel filler hose (A).
    G15694592Courtesy of KIA MOTORS AMERICA, INC.

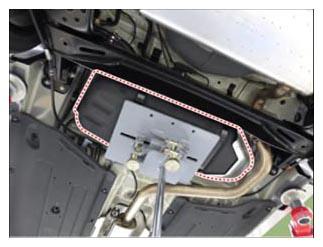

  9. support the fuel tank with a jack.
    G15694593Courtesy of KIA MOTORS AMERICA, INC.

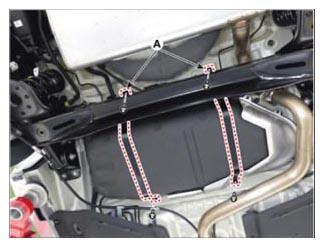

  10. Remove the fuel tank from the vehicle after removing the fuel tank bands (A).

    Tightening torque:

    56.8 - 72.5 N.m (5.8 - 7.4 kgf.m, 41.9 - 53.5 lb.ft)

    G15694594Courtesy of KIA MOTORS AMERICA, INC.
  11. Install in the reverse order of removal.
