Fuel pump

  1. Turn ignition switch OFF and disconnect the negative (-) battery terminal.
  2. Remove the fuel pump assembly.
  3. Check motor operation by fuel pump connector (A) connecting power (No. 2) and ground (No. 4).

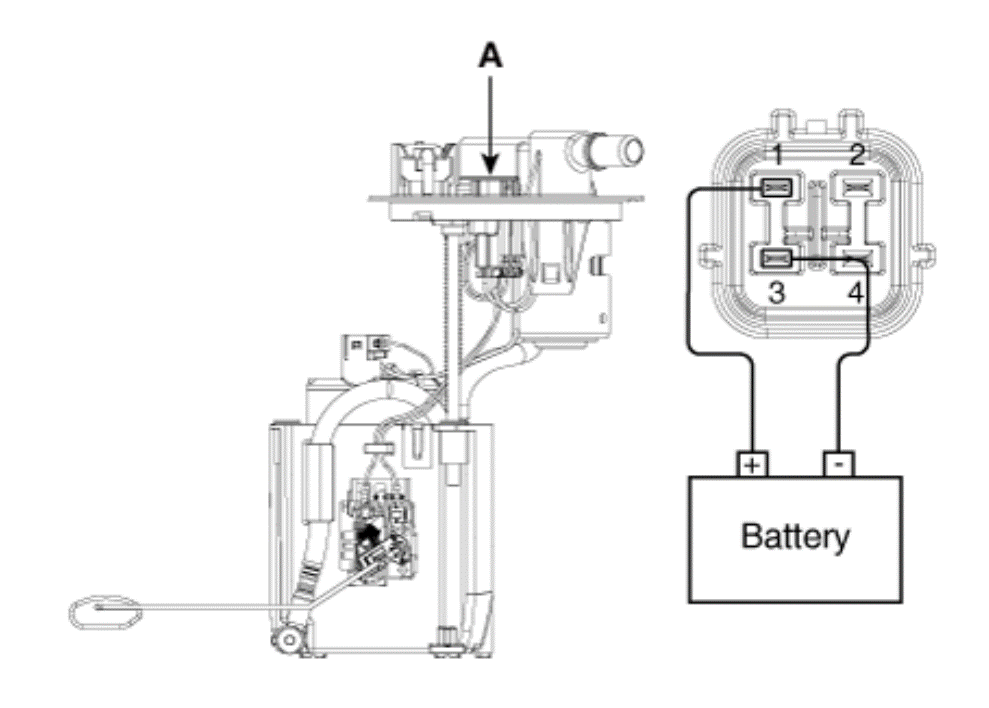

G15694599Courtesy of KIA MOTORS AMERICA, INC.
Pin No. Description
1 Fuel sender signal
2 Fuel pump (+)
3 Fuel sender ground
4 Fuel pump (-)
