Repair Procedures: Removal

  1. Remove the fuel pump.

    (Refer to Fuel Delivery System - "FUEL PUMP ")

  2. Disconnect the fuel pump motor connector (A) and fuel sender connector (B).
    G15694617Courtesy of KIA MOTORS AMERICA, INC.
  3. Disconnect the return nozzle (A) after releasing the hook (B).
    G15694618Courtesy of KIA MOTORS AMERICA, INC.

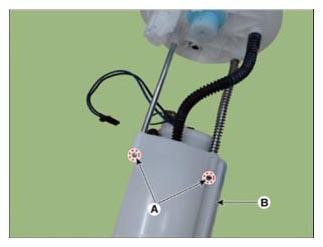

  4. Remove cushion hook (A) and then remove the reservoir cup (B).
    G15694619Courtesy of KIA MOTORS AMERICA, INC.

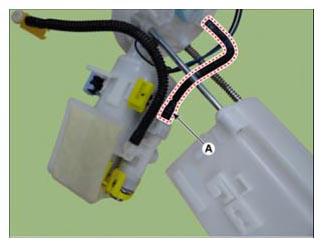

  5. Disconnect the feed tube (A).
    G15694620Courtesy of KIA MOTORS AMERICA, INC.
  6. Remove the pre-filter (A).
    G15694621Courtesy of KIA MOTORS AMERICA, INC.

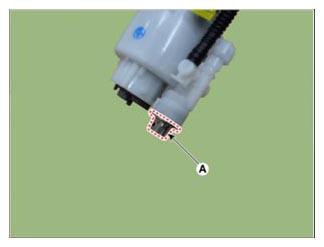

  7. Remove the fuel pressure regulator (A).
G15694622Courtesy of KIA MOTORS AMERICA, INC.
