Home >> Kia >> 2023 >> Niro Plug-In Hybrid EX >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Dual Clutch Transmission Control System (PHEV) >> SBW Control Unit (SCU) >> Components And Components Location >> Component

Components And Components Location: Component

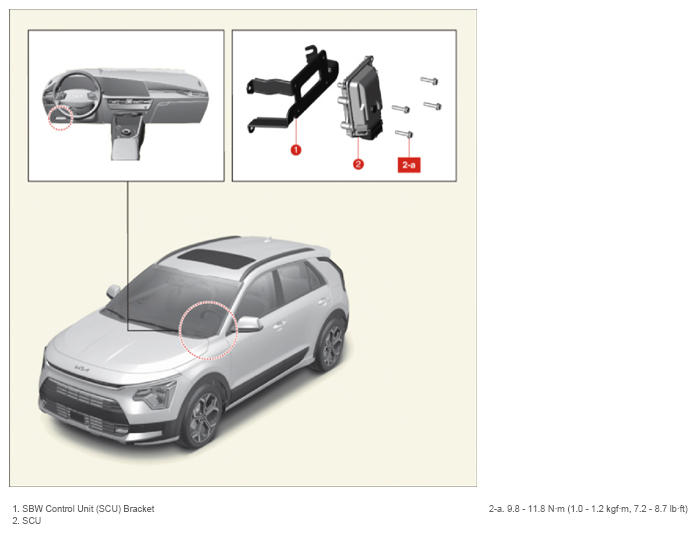

Fig 1: SBW Control Unit (SCU) Components Location With Torque Specifications

G15788284

Courtesy of KIA MOTORS AMERICA, INC.
