Components And Components Location: Component

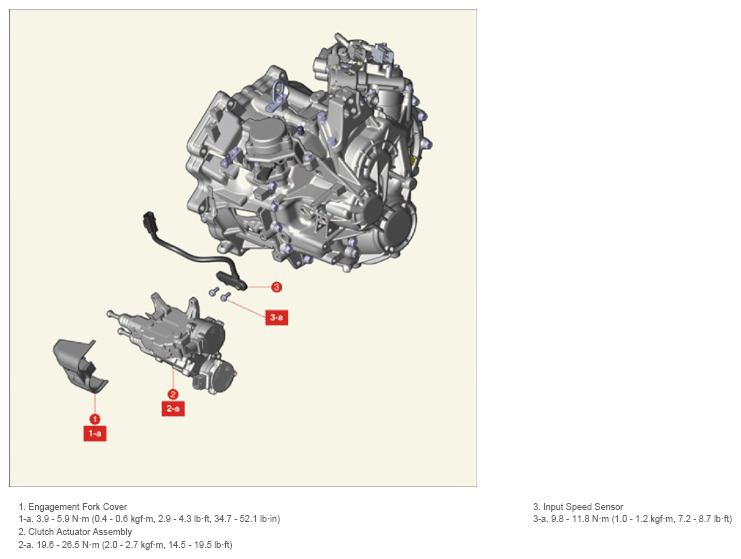

Fig 1: Input Speed Sensor Components Location With Torque Specifications

G15788231

Courtesy of KIA MOTORS AMERICA, INC.
